ATI30 / ATI20

SHRINK-WRAPPER

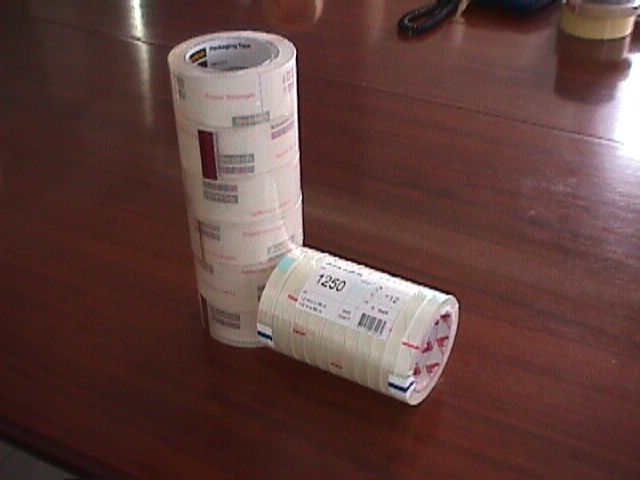

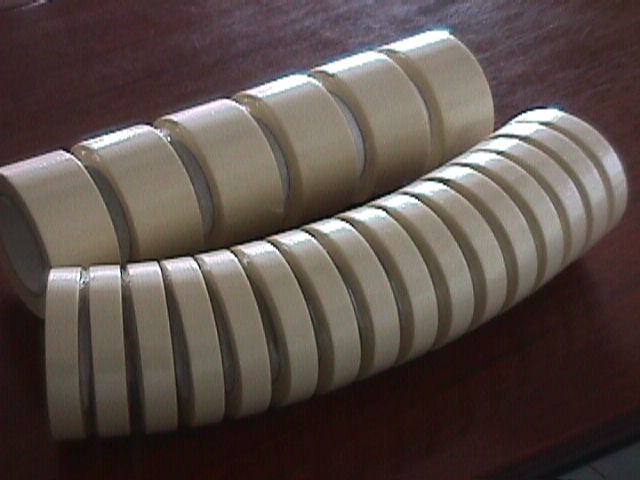

They wrap rolls in 3 configurations: INDIVIDUAL – TOWER – ACCORDION
THE CUSTOMER CAN CHOOSE BETWEEN THE  ATI 30 AND ATI 20 MODEL BASED  THE QUANTITY OF ROLLS ARRIVING  FROM THE SLITTER-REWINDER

Categoria: .

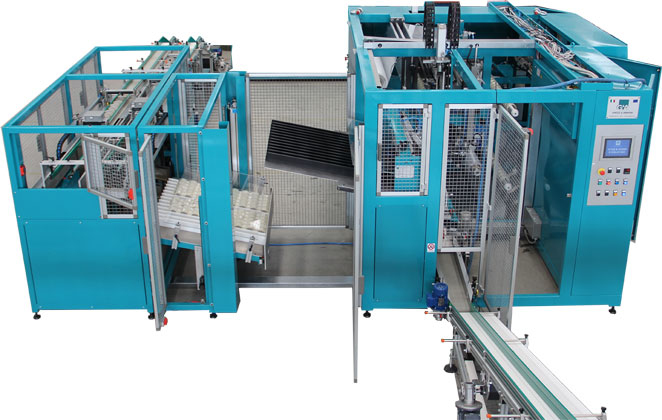

ATI20+KC200[1]

Descrizione prodotto

They work in line with any type of Slitter-Rewinder. The connection to the Slitter takes
place either directly or via the roll feeding unit KC which allows both rolls accumulation and quality control.

ATI30 and ATI20 can be equipped with an automatic roll positioner which guarantees perfect packages with different rolls widths and diameters .



MAIN FEATURES

  • Rolls widths to be packed: from 9 mm. to 100 mm.
  • Max. diameter of the rolls to be packed: 160 mm. (upper diameters upon request )
  • Roll inside diameter: 3” (other diameters upon request)
  • Packaging materials: PVC and PE, neutral or printed.
  • Film driven unwinding
  • Max. width of shrink wrapping film: 1200 mm.
  • Control system for the printed film and bar code positioning
  • Size change-over time:

PRODUCTION

  • ATI30 = 13 STROKES PER MINUTE (156  rolls of 48 mm. height)
  • ATI20 =   7 STROKES PER MINUTE (84 rolls of 48 mm. height).

FITTINGS

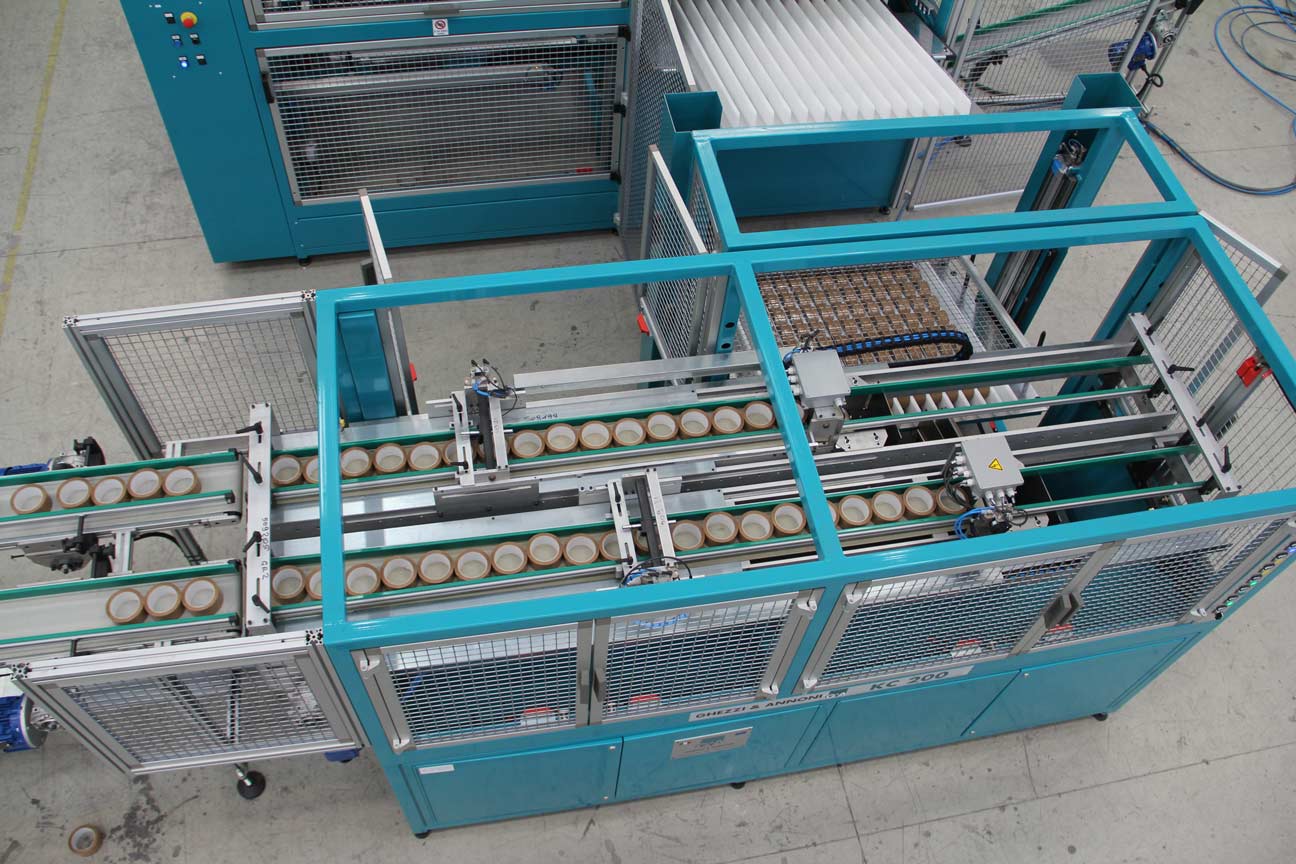

  • ROLL FEEDER – INTERFACE – KC
  • AUTOMATIC ROLLS POSITIONING UNIT
  • Slitting and rewinding group for the trim of shrink wrapping film
  • Conveyor belts for packages transport to labelling machines and/or Carton Fillers
  • Labelling systems for wrapped rolls


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

TIPO DI CONFEZIONAMENTO ROTOLI

Individuale, Soffietto, Torre

TIPOLOGIA

Confezionatrici in termoretraibile

ROTOLI DA CONFEZIONARE

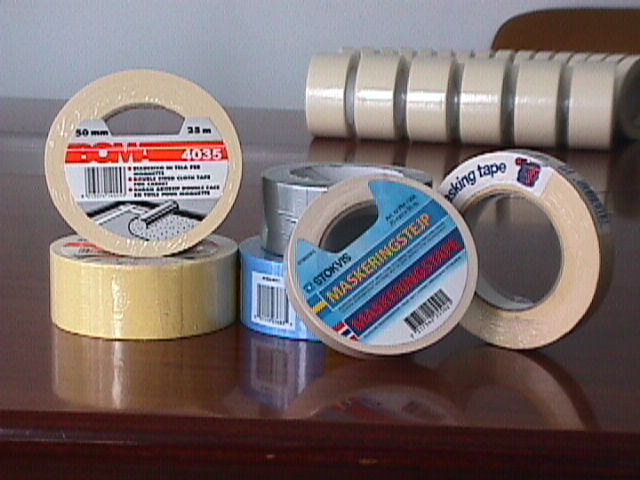

Nastri auto-adesivi con diametro interno 3″
