Descrizione prodotto

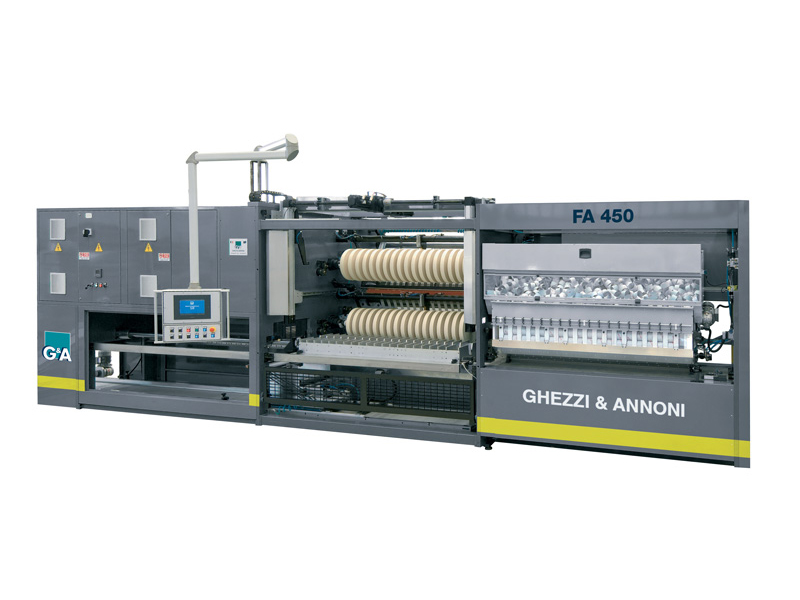

An Innovative web-path with variable progression allows the FA450 to work different materials with speed up to 600 m./min., obtaining rolls and logs always with perfect tensions.
IT CAN BE EQUIPPED WITH AN ADJUSTABLE INTERCHANGEABLE GROUP THAT ALLOWS A PRODUCTION OF ROLLS AND LOGS FROM 30 MM. UP TO THE MAXIMUM MACHINE’S WIDTH.
MAIN FEATURES:
- Working width: up to 2150 mm.
- Slitting width: from 12 mm. to the maximum jumbo-roll width
- Max finished roll diameter: 450 mm.
- Roll inside diameter: 3”
- Minimum gap rollers able to work “in contact” or lay-on roll” mode.
- Slitting system than can be installed at the same time: razor-blades, score knives, shear knives.
- Mechanical speed: 600 m./min.
- TIME NEEDED FOR THE SIZE CHANGEOVER: 15 MIN. APPROX.
FITTINGS:

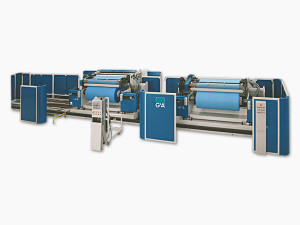

- Unwinder with automatic Jumbo-rolls changeover – Mod. SCR5
- Score-knives and shear-knives slitting systems with automatic positioning
- ADJUSTABLE Interchangeable group for rolls of different widths and to produce logs.
- Interchangeable groups for pre-set widths

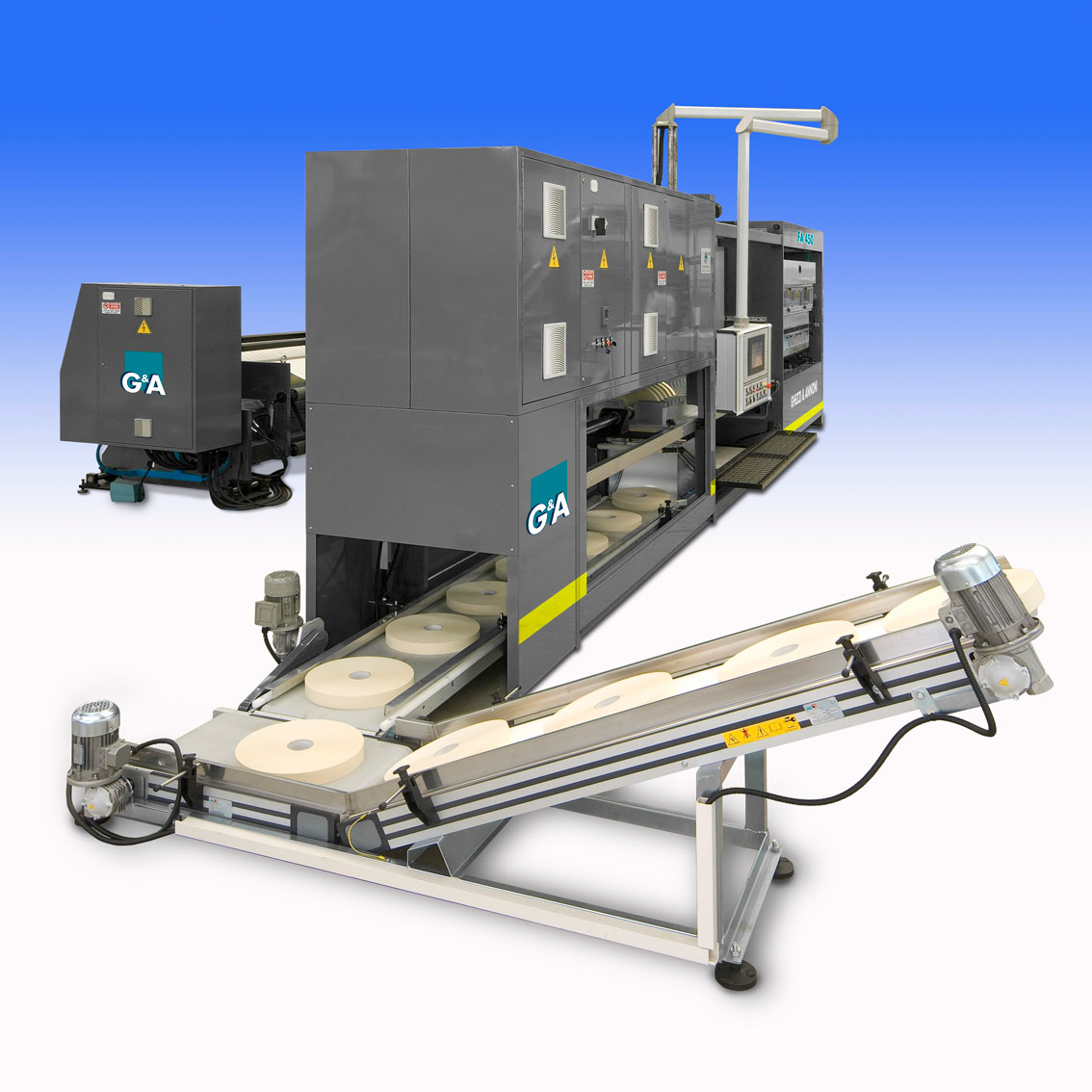

- Rolls conveyance systems to Packaging machines and/or Carton Fillers
- DOUBLE-ADHESIVE TAB APPLICATION GROUP (for materials with covered adhesive)
- LINER RECOVERY STATION
THE FA450 IS BUILT BASED ON THE MATERIALS TO CONVERT
OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER
