IP120 – 3° GENERATION

PICK & PLACE CARTON FILLER

It automatically fills boxes with packs and unpacked rolls

It can be supplied with an automatic boxes dimensions’ setting

Categoria: .
IP120 3 generation

Descrizione prodotto

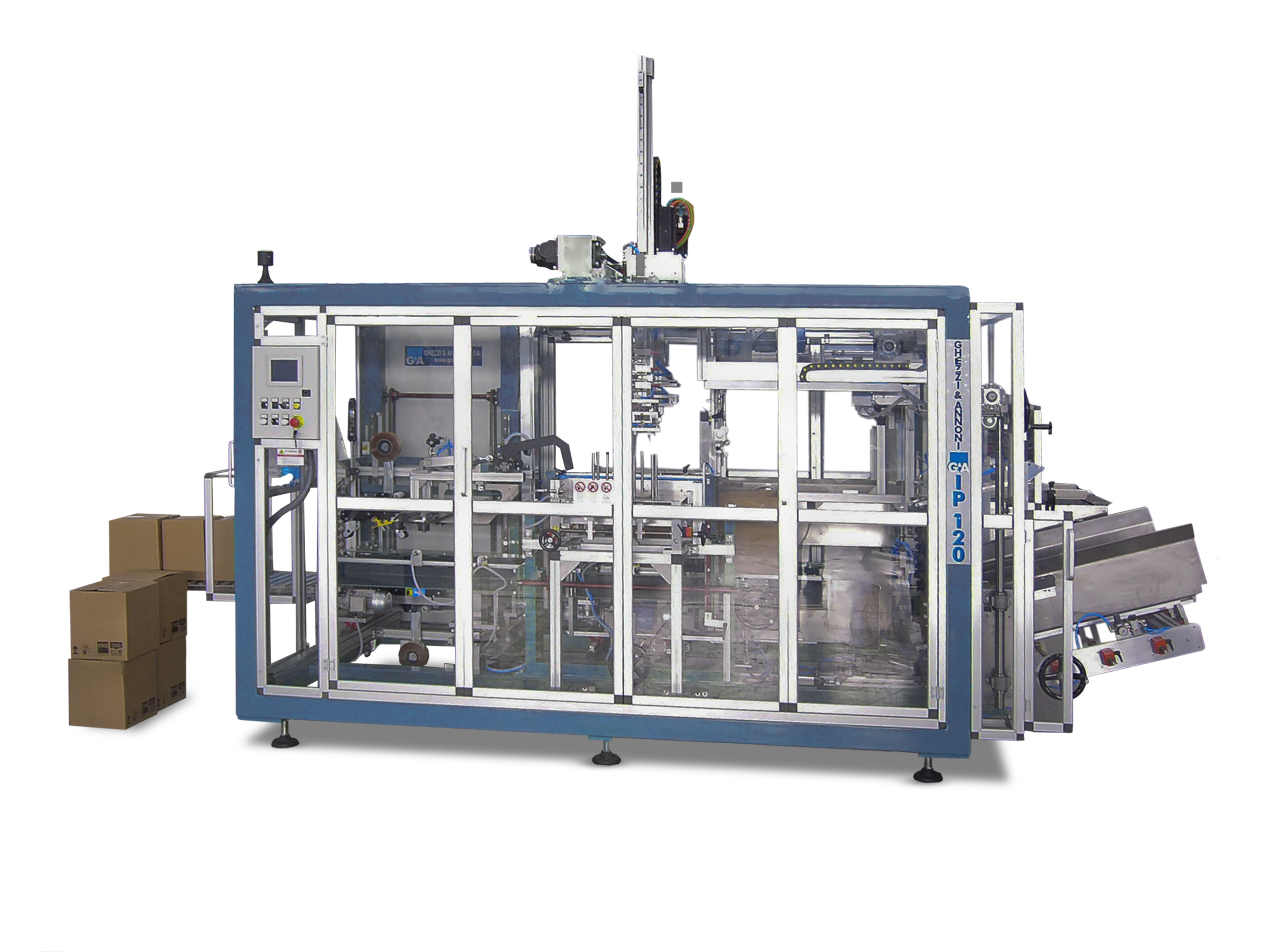

CARTON FILLER mod. IP120 FORMS CARTON BOXES AND FILLS THEM WITH:
  – PACKAGES IN THESE CONFIGURATIONS: ACCORDION, TOWER, FLAT TYPE

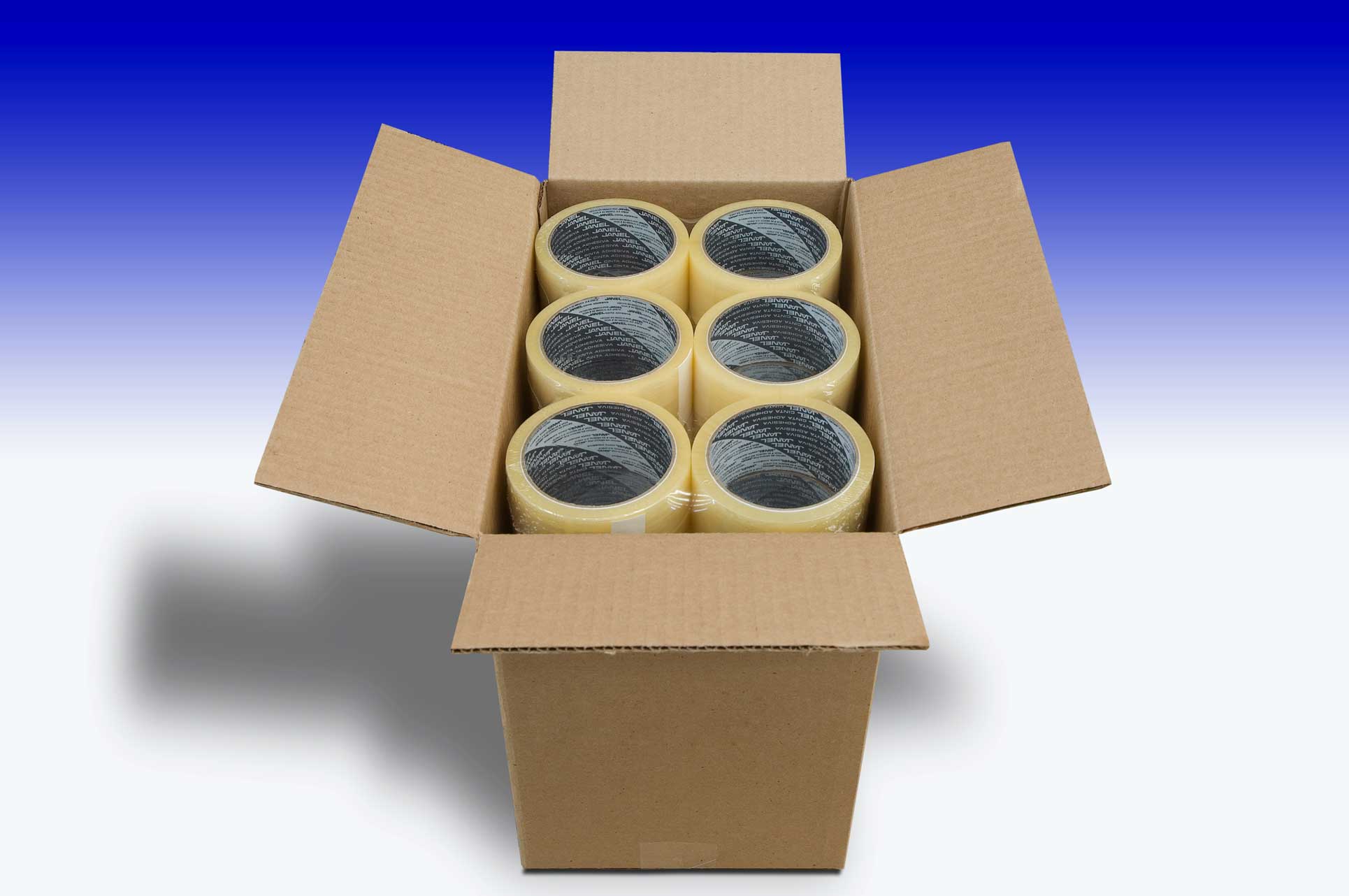

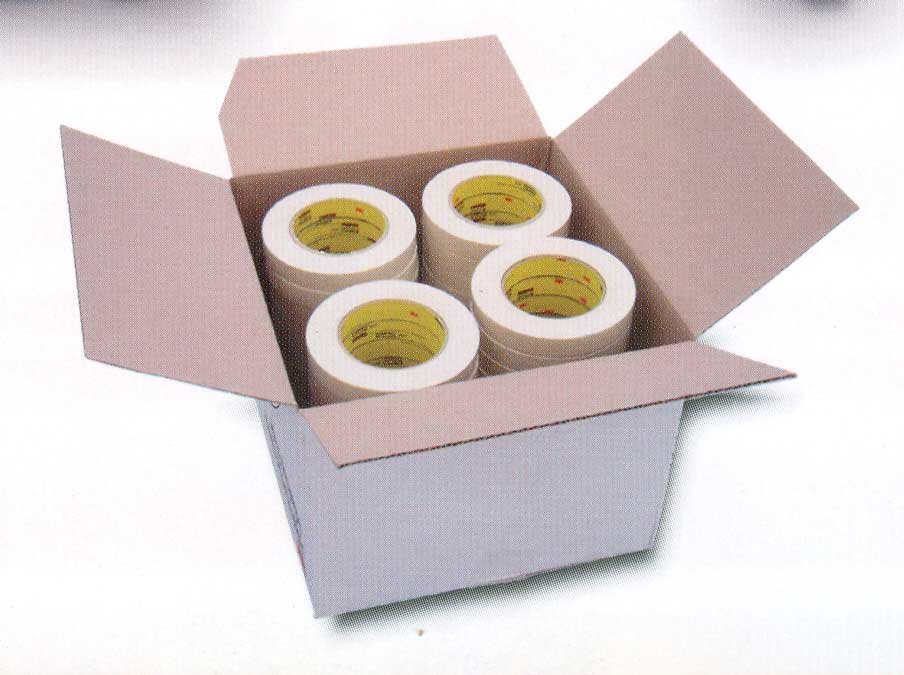

 – INDIVIDUAL PACKED ROLLS
 – INDIVIDUAL BARE ROLLS WITH THE INSERTION OF SILICONE SHEET IN-BETWEEN EACH LAYER



IP120 IS MANUFACTURED IN 2 VERSIONS:

  • With 23 cycles per minute
  • With 42 cycles per minute



MAIN FEATURES:

  • Type of box: pre-formed cardboard
  • Indicative dimensions of the closed boxes:
    –    Min. dimension: 150x210x150 mm.
    –    Max. Dimension: 450x450x300 mm.
    –    Other dimensions upon request
  • Cartons magazine capacity: 100 cartons approx..

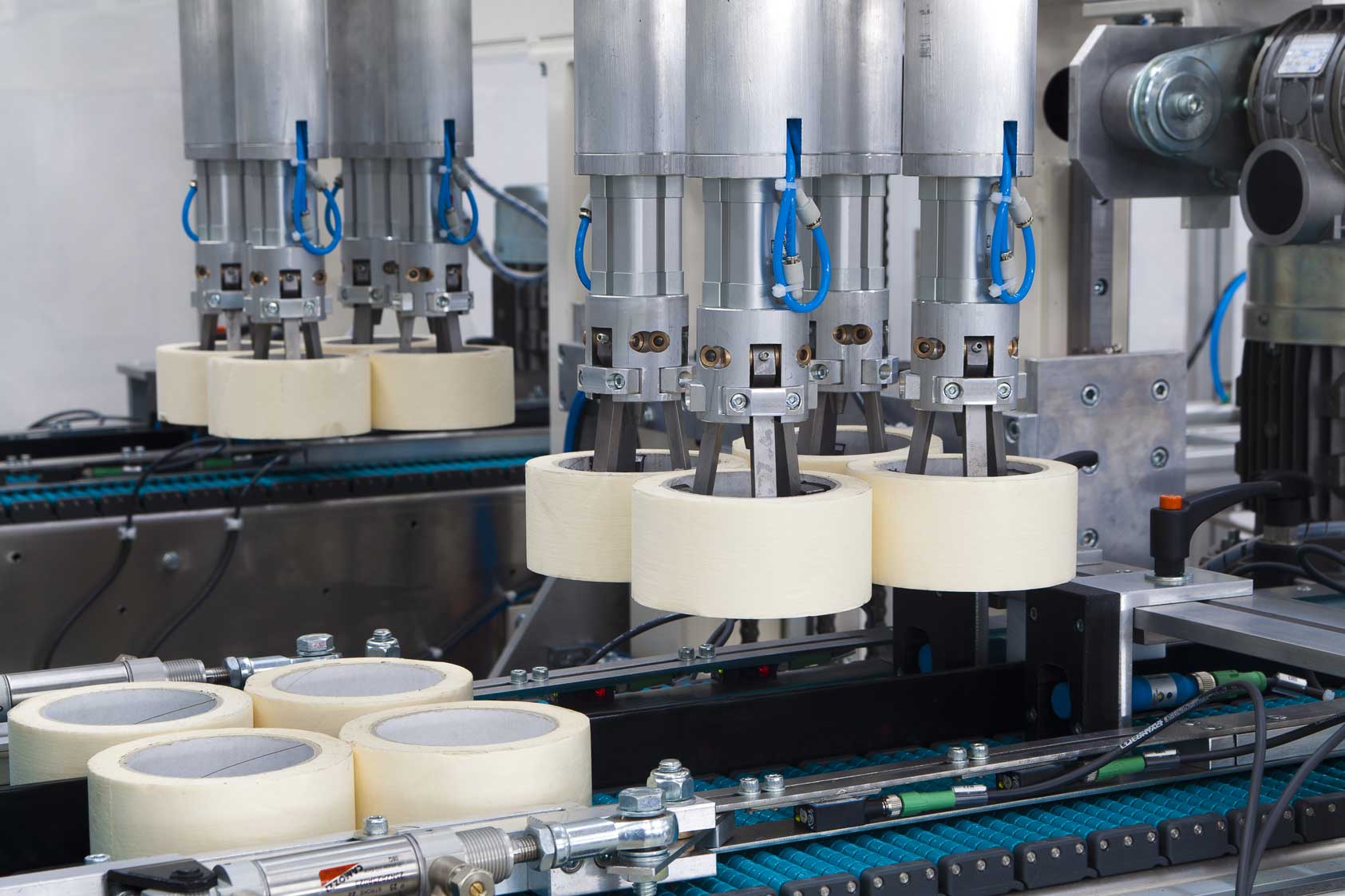

  • Pick-up pliers for rolls and packages, with quick changeover
  • Automatic setting (on demand):
  • great reduction of time for the changeover of the boxes’ sizes
  • the system works with recipes that are loaded on the HMI
  • the only manual operation is the pick-up plier’s changeover, now with quick clamps

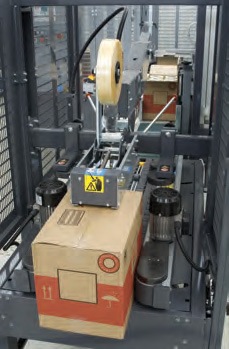

  • Upper and lower carton sealing with self-adhesive tape



FITTINGS:

  • Manipulator for pick up and silicone paper sheet insertion between each layer.
  • Boxes conveyor belts to the Palletizing unit
  • Labelling  systems for rolls ,packages and boxes
