Descrizione prodotto

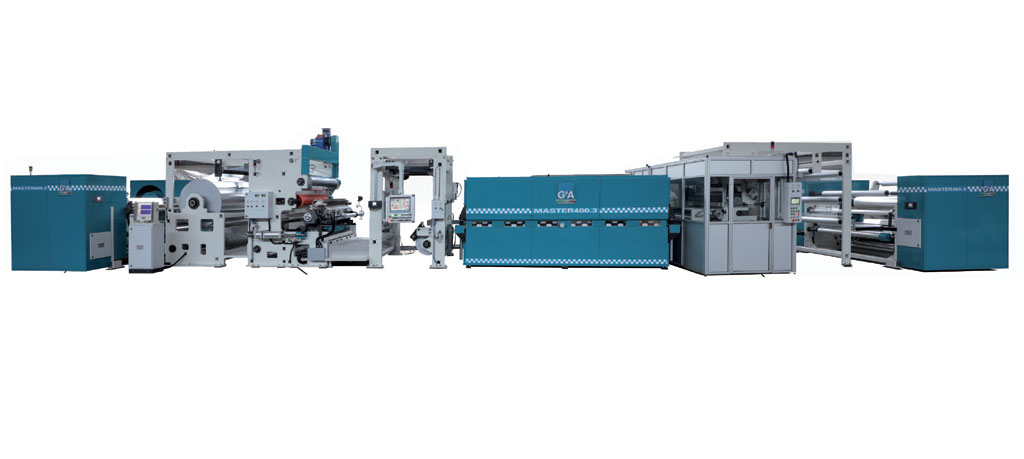

It can produce BOPP and MASKING TAPE Jumbo-rolls with production speeds up to 400 m./min.
By using the laminating system it can produce Jumbo-rolls of: DUCT TAPE – DOUBLE SIDED TAPES – PAPER – REINFORCED and OTHER LAMINATED MATERIALS.
MAIN FEATURES:
- Working width: up to 2200 mm.
- Automatic Duplex Unwinder
- Release coating die, rotogravure type, with closed doctor blade

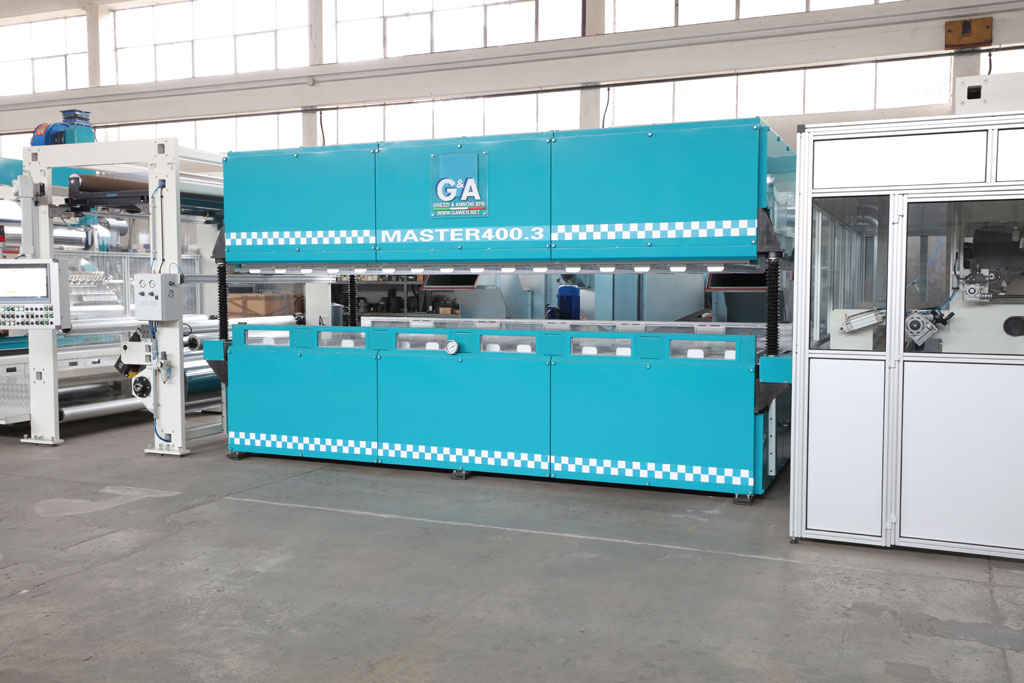

- Release oven, floating type, with high efficiency
- Web thread up, catenary type

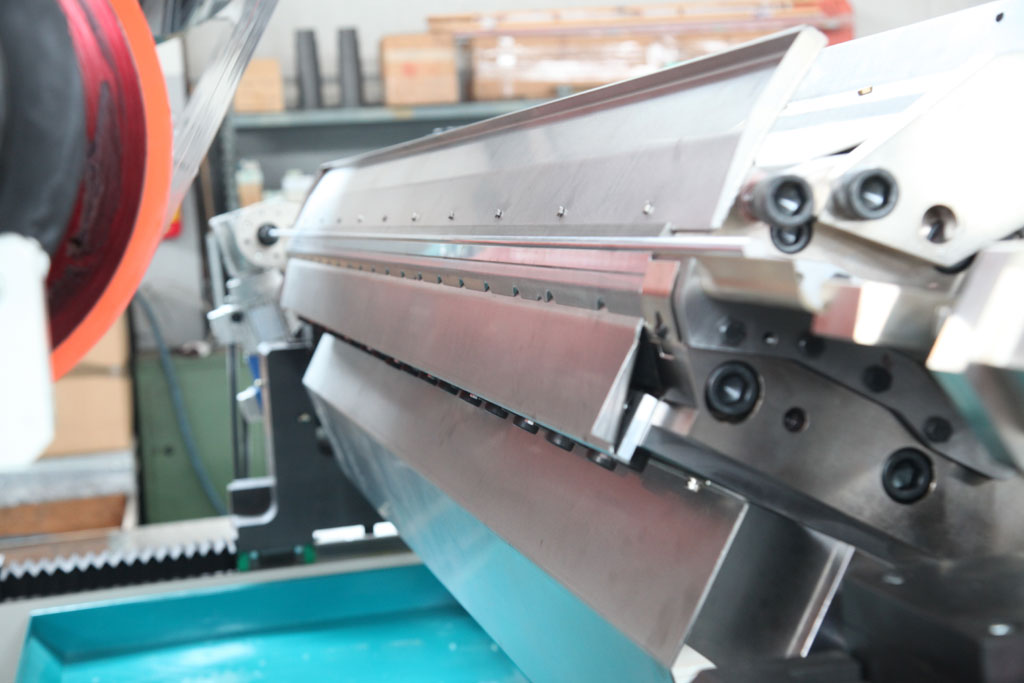

- Coating die with rotating bar and electrical heating for different zones
- Applied adhesive quantity, from 18 to 80 gr/ m²

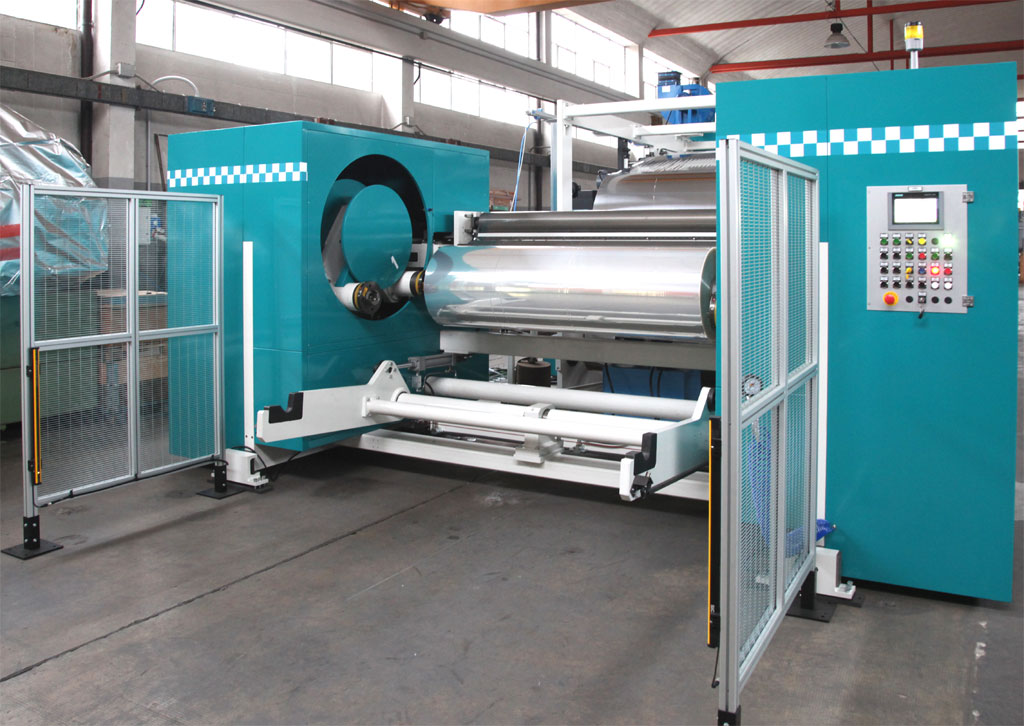

- Automatic Duplex Rewinder with following arms
FITTINGS:
- Sleeve system on release and Hot-Melt die for quick widths changeover
- Hot-Melt die for the automatic weight control
- Laminating system with Automatic Duplex Unwinder
- Corona Treatment unit
- Stretching group
- Release group encasing
OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER
