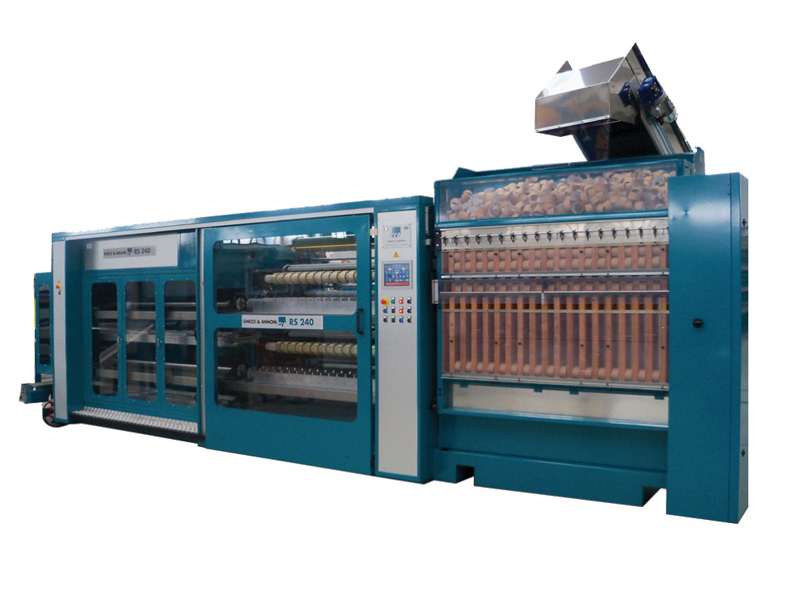

RS240/HD

FULLY AUTOMATIC

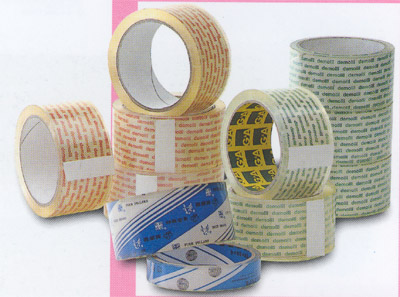

For the production of rolls of: BOPP –MASKING TAPE – DUCT TAPE
and OTHER SELF-ADHESIVE TAPES.

01-RS-240-MACCHINA

Descrizione prodotto

The model RS240/HD can be equipped with the PACK-ROLL system to eliminate  air bubbles during the  rewinding phase and to produce rolls of BOPP “Superclear”.



 MAIN FEATURES:

  • Working width: up to 2150 mm.
  • Min. slitting width: 9 mm.
  • Max finished rolls diameter:  240 mm.
  • Minimum gap group
  • Rolls inside diameter: 3” (1 ½ “ and 2″ upon request)
  • Slitting system: razor blades (score knives upon request)
  • Mechanical speed: from 450 m./min. according to the requested version.
  • TIME NEEDED FOR THE SIZE CHANGEOVER: 20 MIN. APPROX.

PRODUCTION:

  • Cycle time for 50 m. rolls = from 19 to 21 sec..
  • Cycle time for 100 m. rolls = 25 sec. approx.
  • THE TIMES VARY ACCORDING TO THE LENGHT AND TO ROLLS’ WIDTHS.

FITTINGS:

  • PACK-ROLL group to produce rolls of “superclear” and to remove the air bubbles  from the rolls
  • Interchangeable groups to produce rolls with 1 ½ “ – 2” inside diameters
  • Rolls conveyance system to Packaging machines

END-LINE:

The RS240 Slitter-Rewinders can work in line with different models of Packaging machines and Carton Fillers:

  • LS60 e LS27: for FLAT configurations
  • ATI30 e ATI20: for INDIVIDUAL, ACCORDION, TOWER configurations
  • IP120 e IP120/2: Pick & Place Carton Fillers
  • PS20: Palletizing unit


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

DIAMETRO INT. ROTOLI

1,5″, 2″, 3″ (6″)

CICLO PRODUTTIVO

COMPLETAMENTE AUTOMATICO

DIAMETRO MAX ROTOLI FINITI

Da 240 mm a 400 mm
