Descrizione prodotto
It is manufactured in 2 versions:
- with direct connection to the shrink-wrappers
- with a connection to the interface to the shrink-wrapper.
MAIN FEATURES:
- Working width: up to 2150 mm.
- Min. slitting width: 12 mm.
- Max finished rolls diameter: 170 mm. (210 mm. on demand)
- Minimum gap group
- Rolls inside diameter: 3”
- Slitting system: razor blades (score knives upon request)
- Mechanical speed: 550 m./min.
- TIME NEEDED FOR THE SIZE CHANGEOVER: 20 MIN. APPROX.
PRODUCTION:
- Cycle time for 50 m. rolls = from 16 to 18 sec..
- Cycle time for 100 m. rolls = 21 sec. approx.
-
THE TIMES VARY ACCORDING TO WORKING WIDTH OF THE SLITTER-REWINDER
MAIN FITTINGS:
- PACK-ROLL group to produce rolls of “superclear” and to remove the air bubbles from the rolls
- Rolls conveyance system to Packaging machines
END-LINE:

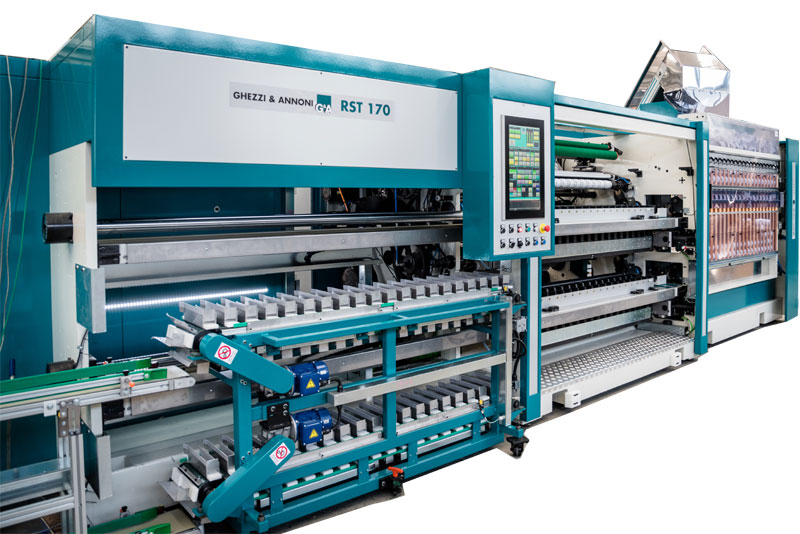

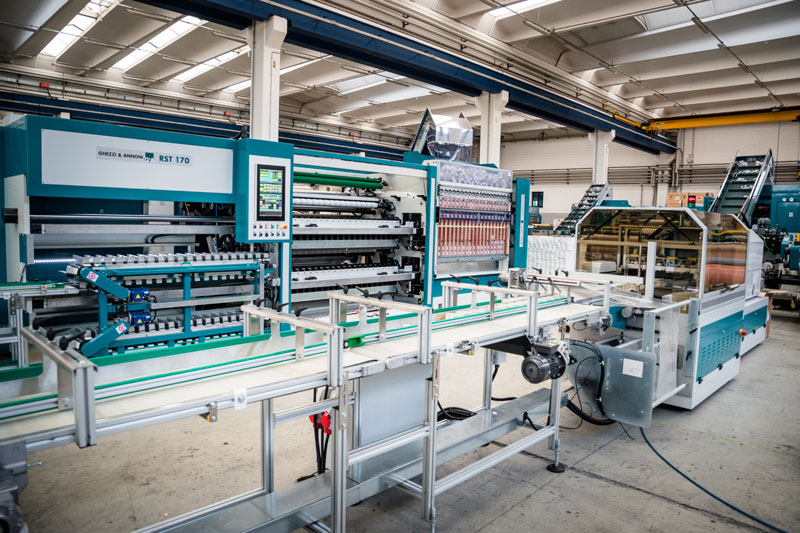

The RSt170 Slitter-Rewinder works in line with different models of Packaging machines and Carton Fillers:
- LS60 : for FLAT configurations
- ATI30 e ATI20: for INDIVIDUAL, ACCORDION, TOWER configurations
- IP120 e IP120/2: Pick & Place Carton Fillers
- PS20: Palletizing unit
CONTACT US AND WE WILL INFORM YOU ABOUT SPECIFIC TECHNICAL FEATURES AND THE BEST FITTINGS
