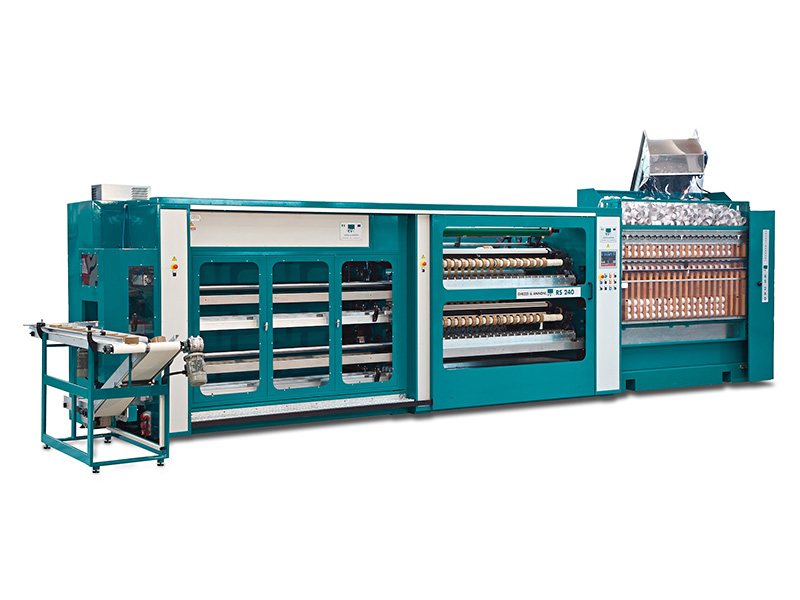

RS240 W.W. 1800 mm

FULLY AUTOMATIC SLITTER-REWINDER

TO PRODUCE ROLLS OF BOPP AND MASKING TAPE’S PRODUCTION.





RS240 con integrale

Descrizione prodotto

This RS240 is equipped with razor blades slitting systems and is very suited to produce rolls of: BOPP, PVC and MASKING TAPE

MAIN FEATURES

  • Working width: 1800 mm. (71″)
  • Max diameter of finished rolls: 240 mm. (9.4″)
  • Interchangeable group for cores of: 50 mm. (other sizes on demand)
  • Shaft-less driven unwinder with arms to take jumbo-roll from the floor
  • Max. jumbo-roll diameter: 1000 mm.
  • Slitting system: razor blades
  • I.D. cores: 3″
  • Mechanical speed: 400 mt./min.
  • Complete soundproof (80 dba)

OUTPUT CAPACITY

  • Cycle time for rolls of 50 mt. of BOPP: from 22 sec. approx.

FITTINGS ON DEMAND

  • Interchangeable groups for other sizes
  • Corona treater
  • Conveyor belts to packaging

1 Year Guarantee
