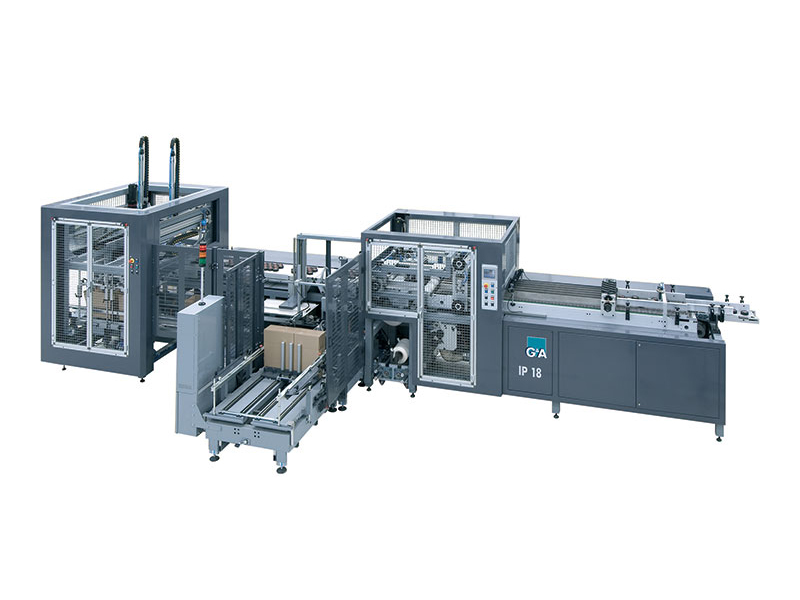

IP18

PICK & PLACE CARTON FILLER

It is particularly suitable to fill the boxes with AUTOMOTIVE TAPE and small diamaters rolls on 1 ½ “ cores inside diameter, with a silicone paper sheet between each roll layer.

Categoria: .
IP-18
introduzione-rotolinipresa-rotoliniscatole

Descrizione prodotto

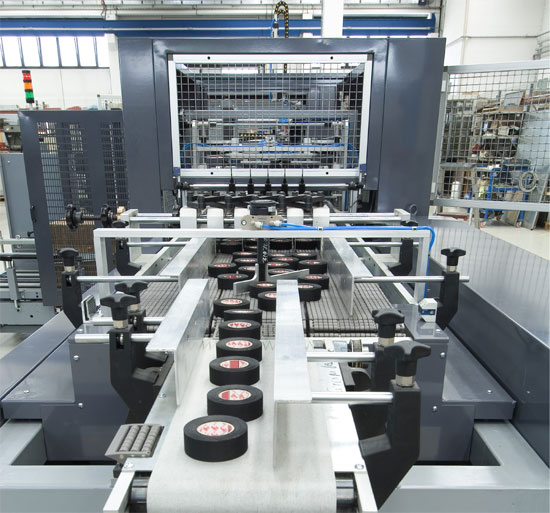

High-performing machine – pick & place type – that works In line with automatic Slitter-Rewinders.



MAIN FEATURES:

  • Carton Former

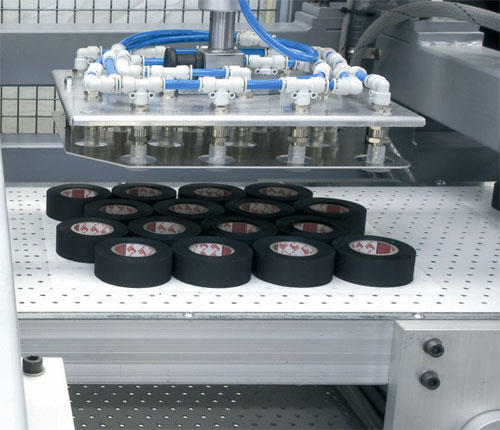

  • Cartesian arms for rolls pick-up
  • Pick-up arms and positioning of the silicone paper
  • Outside diameter for rolls to be packed: from 35 to 100 mm.
  • Closed boxes dimensions:
    - Width: from 150 to 350 mm.
    - Length: from 200 to 450 mm.
    - Height: from 150 to 350 mm. (other dimensions upon request)
  • Upper and lower carton sealing

PRODUCTION:

  • 18 layers per minute

FITTINGS:

  • Connection system to the Slitter-Rewinders (or Lathe-cutter)
  • Boxes conveyor system to the Palletizing unit
  • Labeling systems


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

TIPOLOGIA

Inscatolatrici
