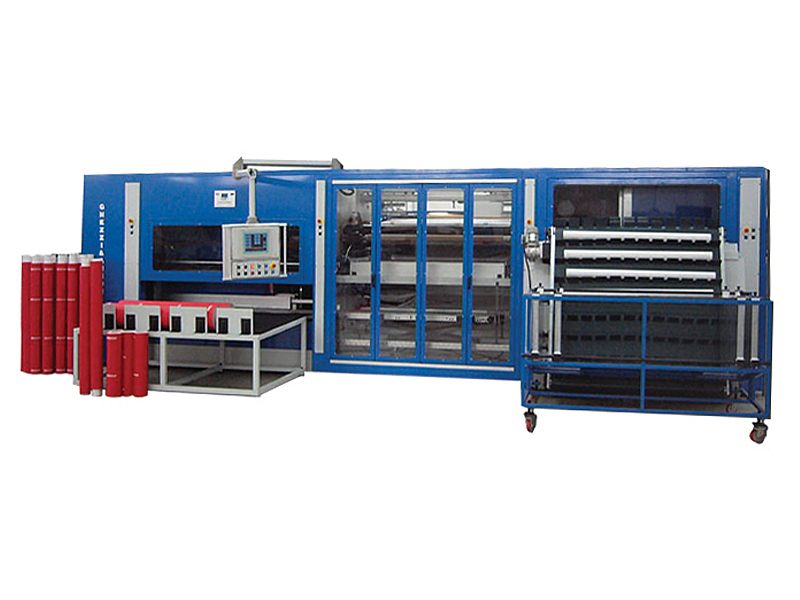

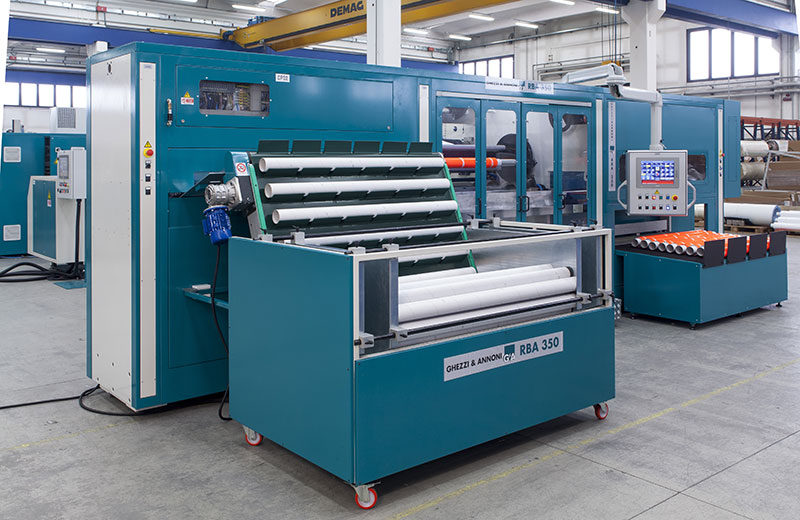

RBA300

FULLY AUTOMATIC

AUTOMATIC LOG-WINDER MANUFACTURED TO CONVERT ANY KIND OF MATERIALS: LABELS – LAMINATED MATERIALS, FILM , PAPER, CLOTH, ETC.
IT CAN BE EQUIPPED WITH FINISHED LOGS CLOSING SYSTEM TO AVOID ANY PRODUCTS CONTAMINATION.

IT IS MANUFACTURED IN  3 STANDARD VERSIONS TO PRODUCE LOGS WITH MAX. DIAMETER OF 200 – 300 – 350 mm. (500 in a SPECIAL VERSION)



RBA350_DEFI
RBA350_DETT_4RBA350_DETT_2RBA350_DETT_1RBA350_DETT_3

Descrizione prodotto

RBA300 and the LOG-PACK system forms an automatic line able to: WRAP – LABEL – PACK – INSERT LATERAL CAPS – PALLETIZE – (FROM THE JUMBO-ROLL TO THE PALLETIZING UNIT WIHTOUT ANY MANUAL INTERVENTION).



MAIN FEATURES:

  • Working width: from 1000 to 2300 mm.
  • Finished logs min. width: 500 mm.
  • Finished logs max. diameter: from 200 up to 350 mm.
  • Finished logs inside diameter: 3” (from 1″ up to 6″ on demand)
  • Mechanical speed: from 400 to 600 m./min. according to the material to convert
  • Automatic loading of the cardboard tubes

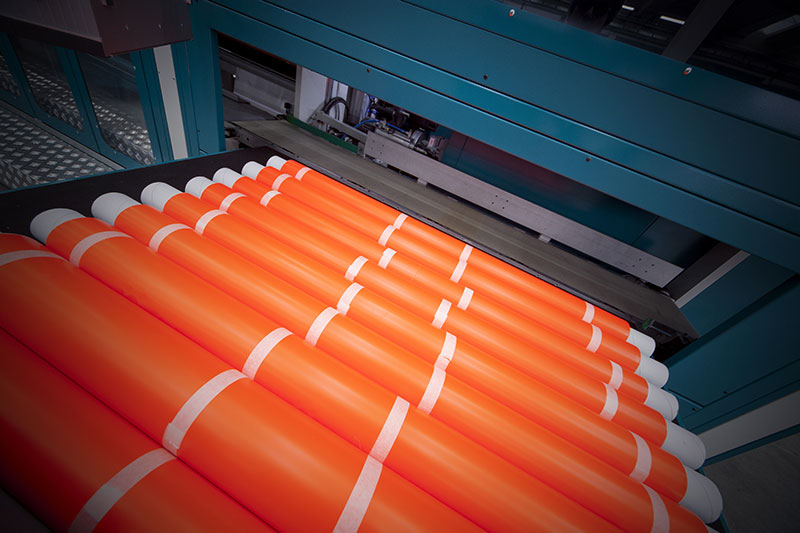

  • Automatic unloading of the finished logs

INDICATIVE PRODUCTION:

  • 50 m. logs: from 14 to 28 sec. according to the materials and machine’s configuration

FITTINGS:

  • Longitudinal slitting systems
  • Sistemi di taglio longitudinale
  • Trims rewinding – standard or vacuum type

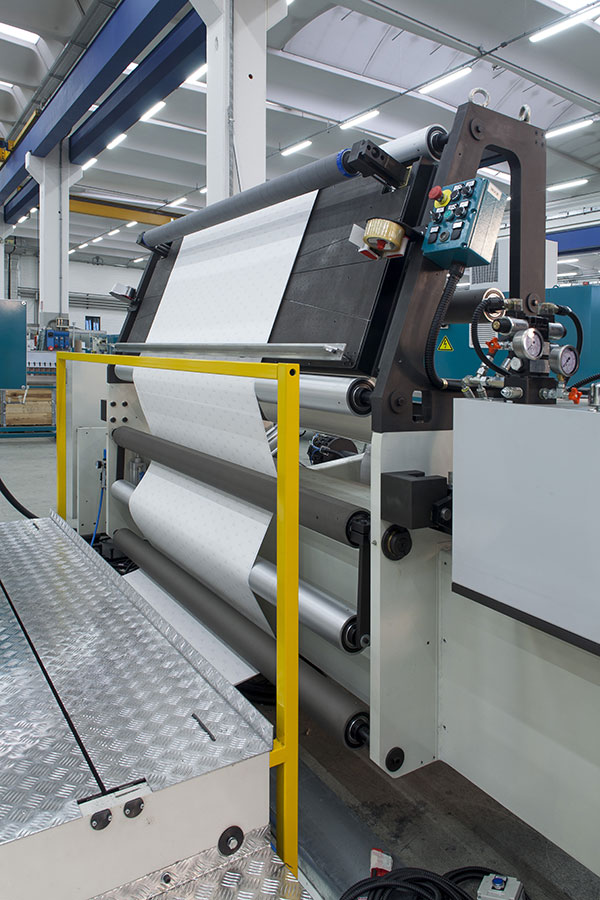

  • Splicing and materials inspection tables
  • End-tab application  on the finished logs
  • Automatic closing systems of the finished logs


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

CICLO PRODUTTIVO

COMPLETAMENTE AUTOMATICO

DIAMETRO MAX BARRE FINITE

> 300 mm
