RT800-1000

SEMI-AUTOMATIC

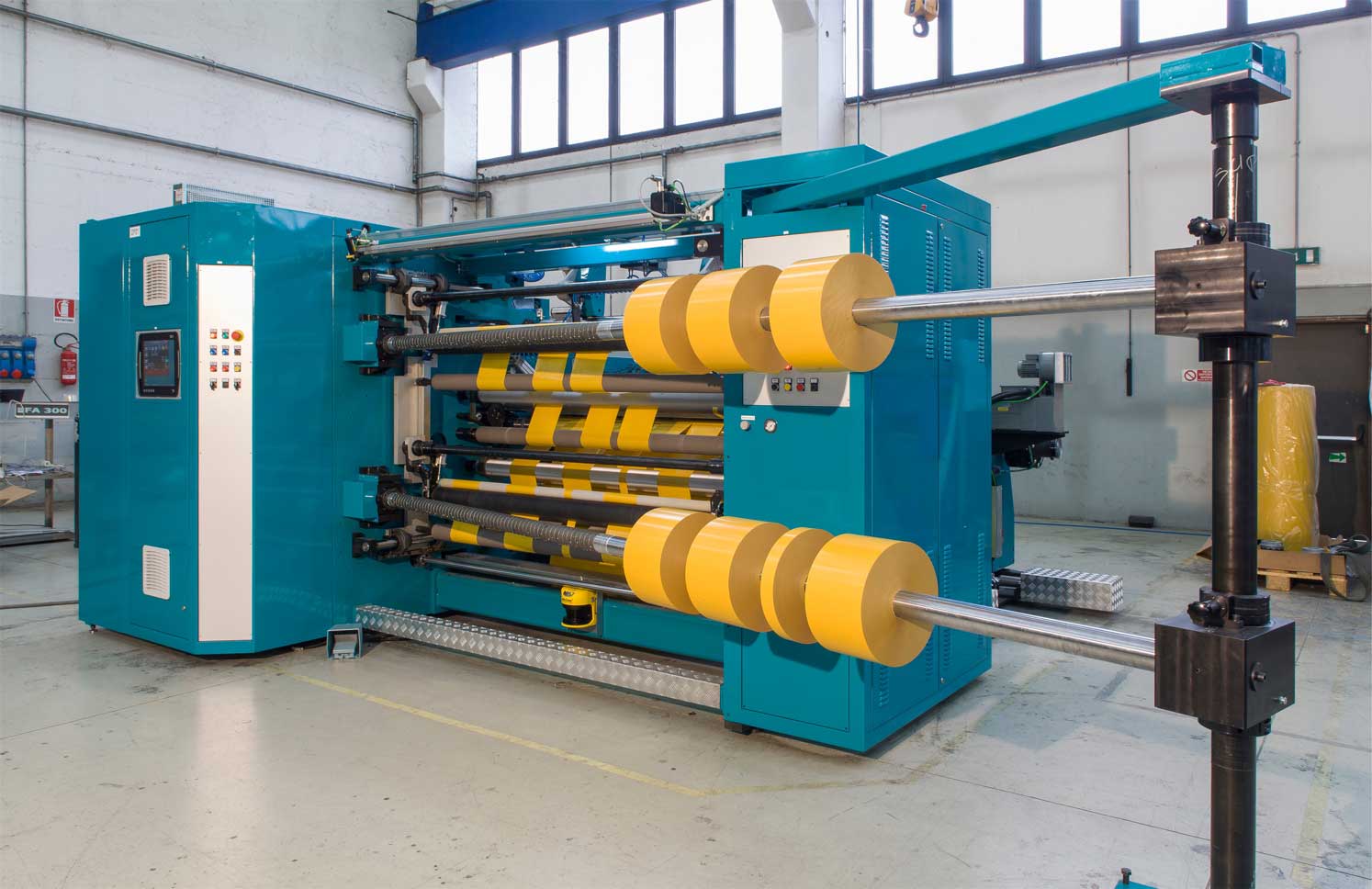

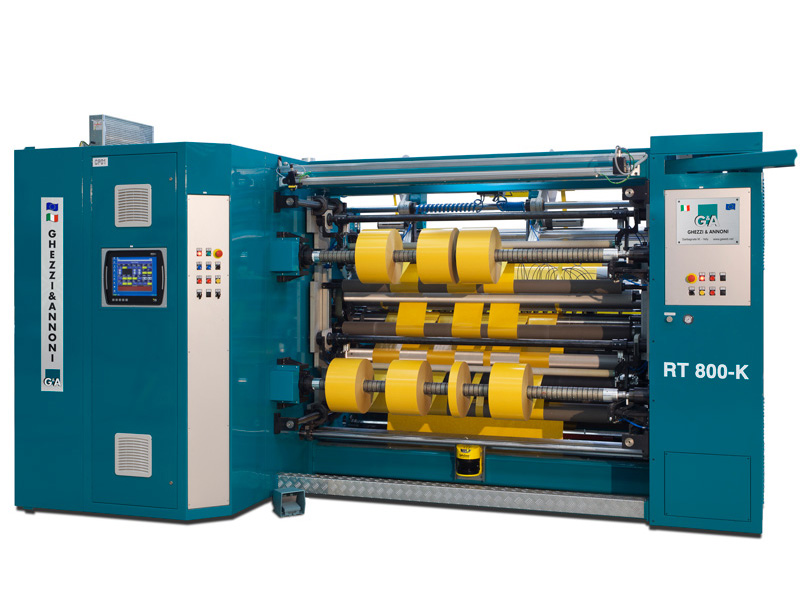

Semi-automatic Slitter-Rewinder suitable to convert films with thickness of few microns and laminated materials with thickness over 5 mm.

It is manufactured in two versions, to produce rolls with max. diamater of 800 mm. and 1000 mm.

IMG_3533
foto bobina RT800-K_3foto rotoli RT800-K_1foto-rotoli-RT800-K_2IMG_3543IMG_3569IMG_2604

Descrizione prodotto

An innovative system for unwinding tension and rewinding torque control allows to reduce waste at the minimum and to obtain rolls of perfect quality with every type of material.

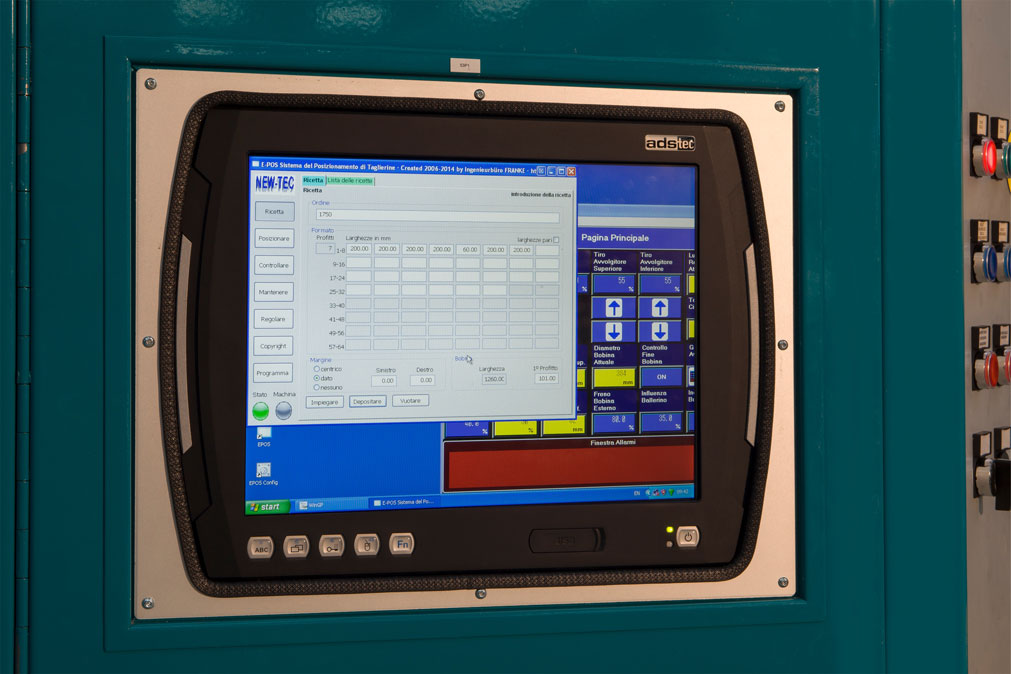

The production process is controlled by a recipe based system



MAIN FEATURES:

  • Working width: up to 2000 mm.
  • Min. slitting width: 20 mm.
  • Max. finished logs diameter: 800 mm.
  • Minimum gap or lay-on rollers
  • Finished logs inside diameter: 3” (6” upon request)
  • Slitting systems: razor-blades, score-knives and shear knives – traditional type or with automatic positioning.
  • Mechanical speed: from 400 to 600 m./min. according to the materials and machine’s configuration
  • Rewinding shafts: pneumatic-differential, pneumatic, differential type

FITTINGS:

  • Delaminating, slitting, laminating systems
  • Finished logs automatic unloading
  • Unloading support of the finished logs
  • Tables for material splicing and inspection
  • Liner recovery station
  • Secondary Unwinder-Rewinder


OTHER FITTINGS AND COMPONENTS ACCORDING TO THE MATERIALS TO CONVERT
AND CUSTOMER’S NEEDS.



Informazioni aggiuntive

CICLO PRODUTTIVO

MANUALE

DIAMETRO INT. ROTOLI

3″ (6″)

DIAMETRO MAX ROTOLI FINITI

> 400 mm
