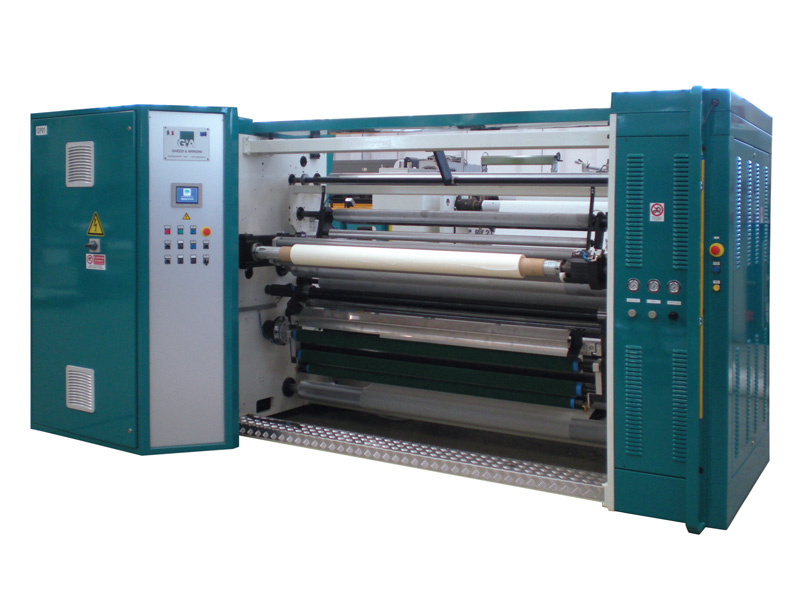

RB250

SEMI-AUTOMATIC

Simple and sturdy machine to produce logs with 250 mm. max. diameter
on  3” and 1” tubes.

Categoria: .
RB250
barre

Descrizione prodotto

The recipe systems facilitates the operator’s job, by assuring that logs are produced each time with perfect tension, even with the most different materials.



MAIN FEATURES:

  • Working width: 1650 mm.
  • Finished logs max. diameter: 250 mm.
  • Finished logs inside diameter: 3” (other diameters upon request)
  • Mechanical speed: 300 m./min.
  • Minimum gap rollers (lay-on roll mode upon request)
  • Braked Unwinder for Jumbo-rolls with 800 mm. max. diameter.

FITTINGS:

  • Automatic cut-off.
  • Longitudinal slitting systems and trims rewinding group
  • Pressure roller in rewinding phase
  • Automatic end-tab application: double adhesive tab – silicone tab
  • Anti-adhesive rollers

INDICATIVE PRODUCTION:

  • 50 m. logs = 28 sec. approx.


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

CICLO PRODUTTIVO

SEMI-AUTOMATICO

DIAMETRO MAX BARRE FINITE

< 300 mm
