RB510

AUTOMATIC

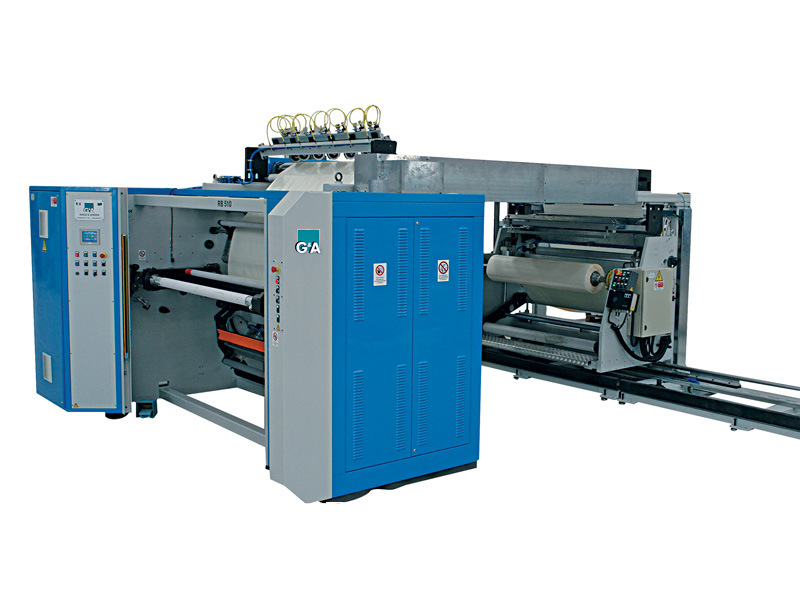

RB510 is manufactured to convert Jumbo-rolls of TRANSFER TAPE AND LAMINATED MATERIALS WITH HIGH COATING WEIGHT.

Categoria: .
RB510-(2)

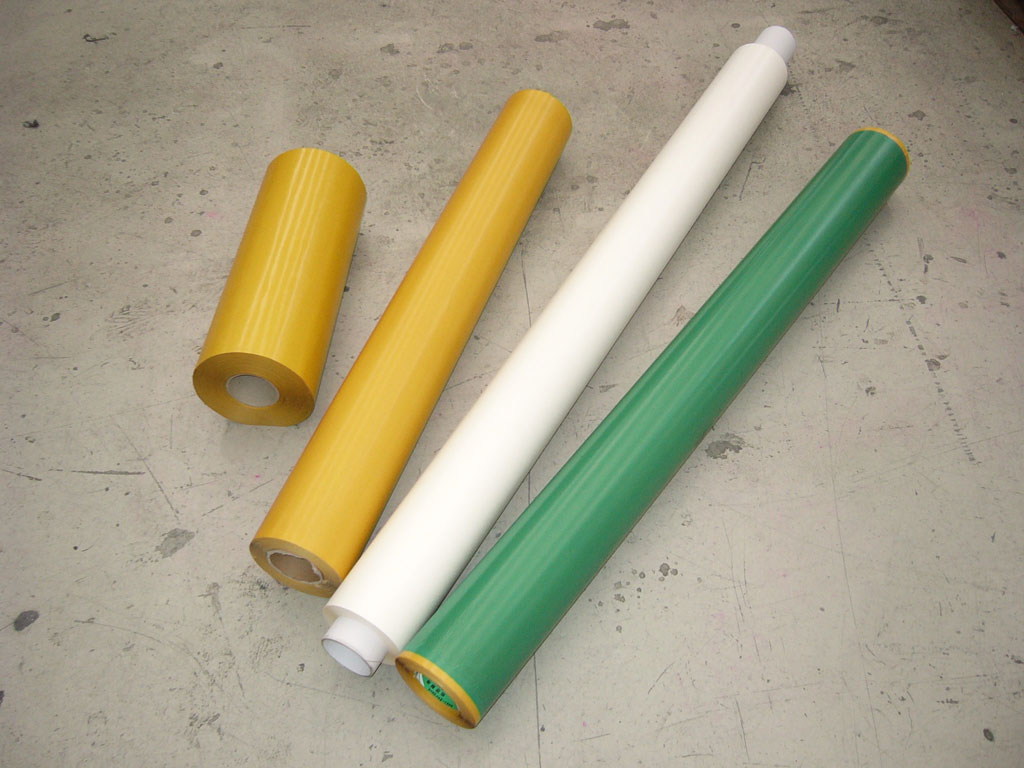

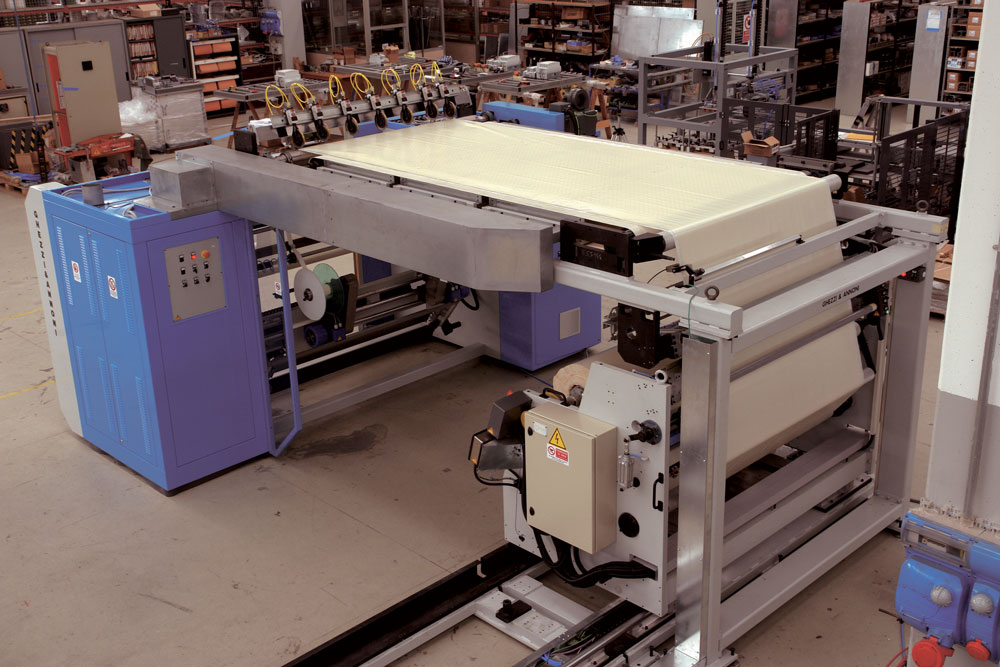

DSC04915P1060193-logs

Descrizione prodotto

On our model RB510 the adhesive is never in contact with the machine’s rollers, thus avoiding any possible product contamination or damage.

It can be equipped with a laminating system of the materials.



MAIN FEATURES:

  • Working width: from 1000 to 1800 mm.
  • Finished logs max. diameter: 510 mm.
  • Tubes inside diameter: 510 mm. (other diameters upon request)
  • Finished logs min. width: 300 mm. approx.
  • Turret with automatic rotation at cycle end
  • Automatic cut-off
  • Minmum gap roller with possible lay-on mode function
  • Mechanical speed: from 250 m./min.

INDICATIVE PRODUCTION:

  • 25 m. logs = 28 sec. approx.

FITTINGS:

  • Laminating/Delaminating system
  • Unloading and conveyance of the finished logs
  • Liner rewinding station
  • Longitudinal slitting systems and trims rewinding group


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

CICLO PRODUTTIVO

SEMI-AUTOMATICO

DIAMETRO MAX BARRE FINITE

> 300 mm
