Descrizione prodotto

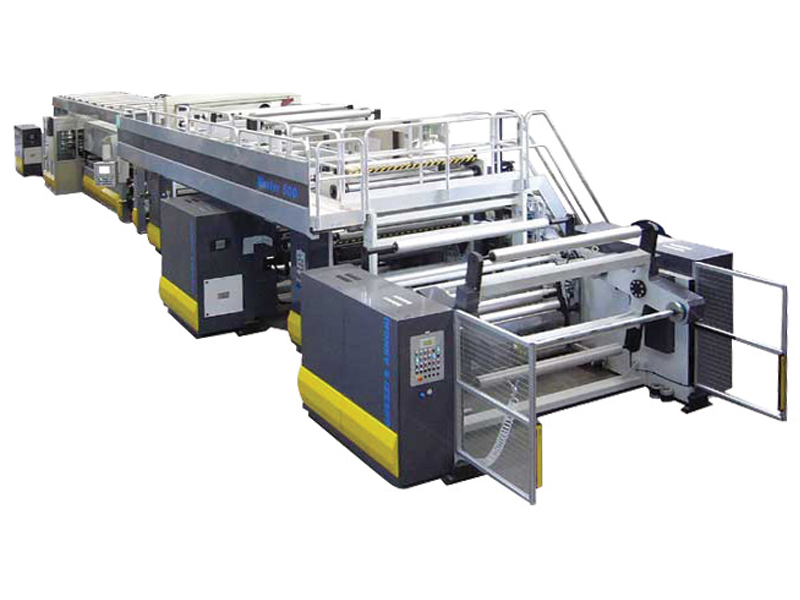

MASTER600 is an innovative Coater conceived to simplify the production process and to make the operator’s job easier during the production adjustment and cleaning phases.
MAIN FEATURES:
- Working widths: up to 2200 mm.
- Automatic Duplex Unwinder
- Release coating die, rotogravure type, with closed doctor blade and sleeve system for a quick changeover of the coating widths
- Release die encasing

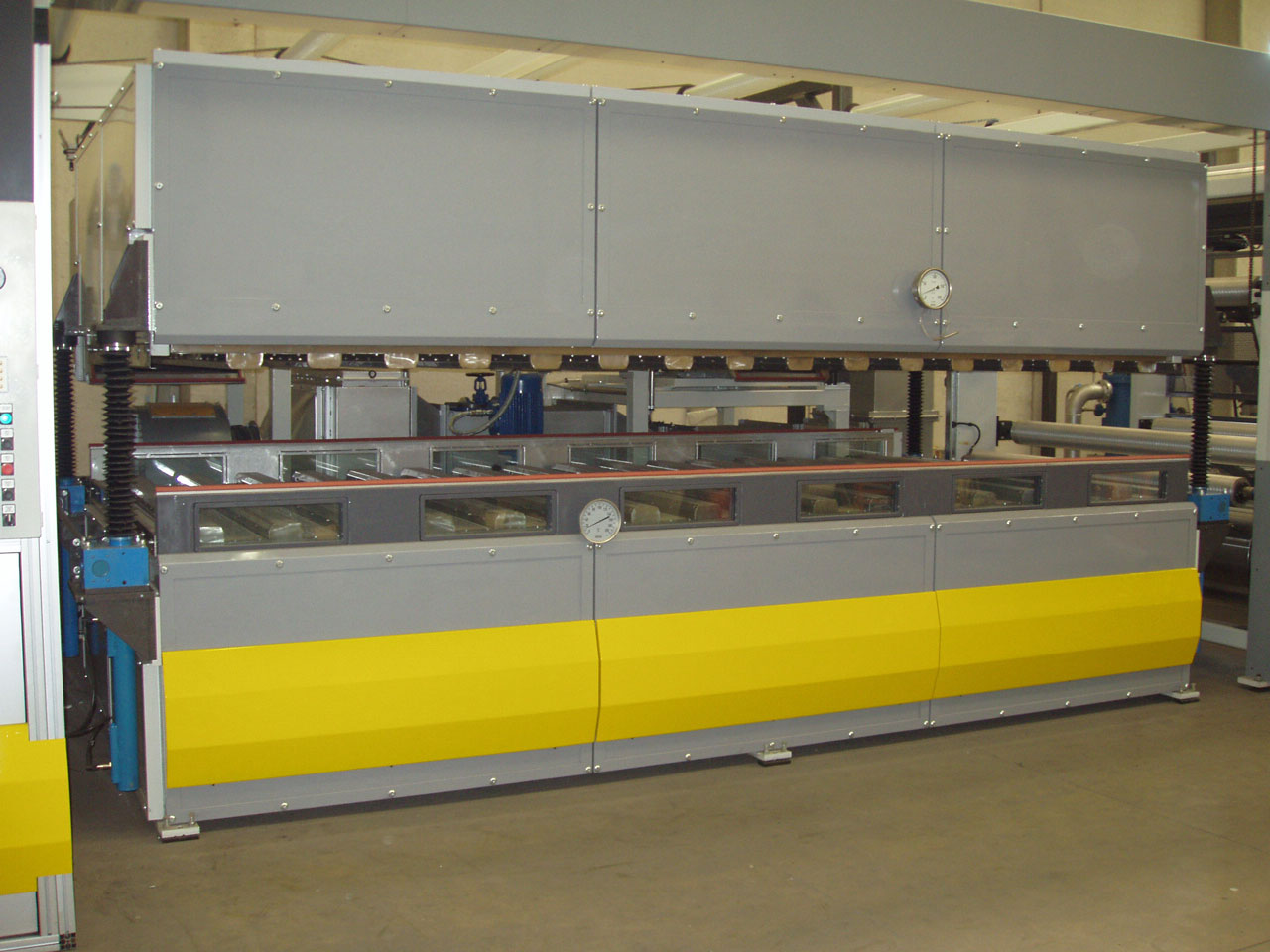

- Release oven, floating type, with high efficiency
- Web thread up, catenary type
- Coating die with rotating bar and electrical heating for different zones.
- Applied adhesive quantity, from 12 to 80 gr/m²
- Quick changeover system of the coating widths by sleeve system
- Automatic duplex Rewinder with follow-up arms.
FITTINGS:
- Hot-Melt die for the automatic weight control
- Automatic weight control system
- Corona treatment unit
- Stretching group
OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER
