TKS

WATER AND SOLVENT BASED

It is able to coat and laminate many different carriers: FILM– PAPERS – FABRICS – NON-WOVEN,  etc.

TKS

Descrizione prodotto

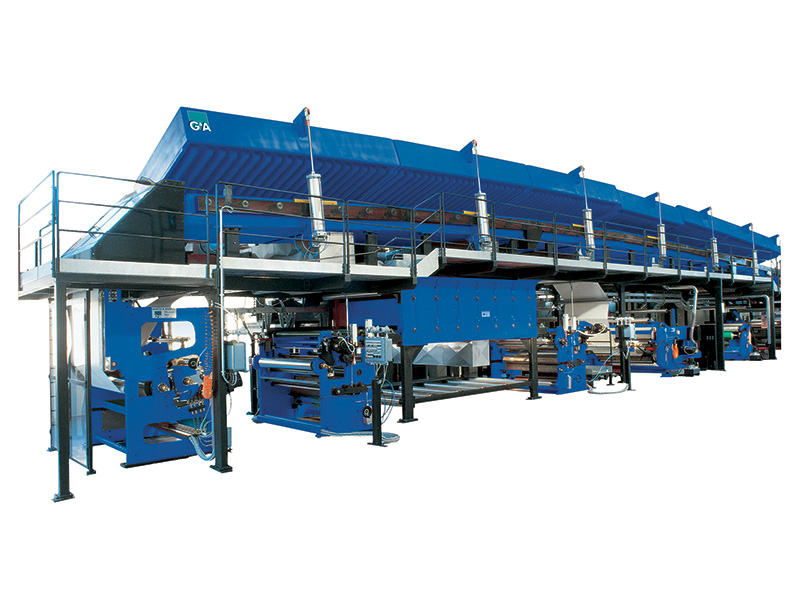

The TKS is a machine designed in modular form, manufactured according to specific production needs.
It can be manufactured for rubber based solvents and water and solvent based acrylic adhesives.



MAIN INDICATIVE FEATURES

  • Working width: from 1200 up to 2300 mm.
  • Mechanical speed: variable from 150 to 500 m/min.
  • Automatic Duplex Unwinder
  • Mayer rod, kiss or gravure, with doctor blade for primer or release
  • Standard coating dies or trolley type, Direct or Reverse Roll, with double doctor blade – Mayer rods – Reverse Gravure.

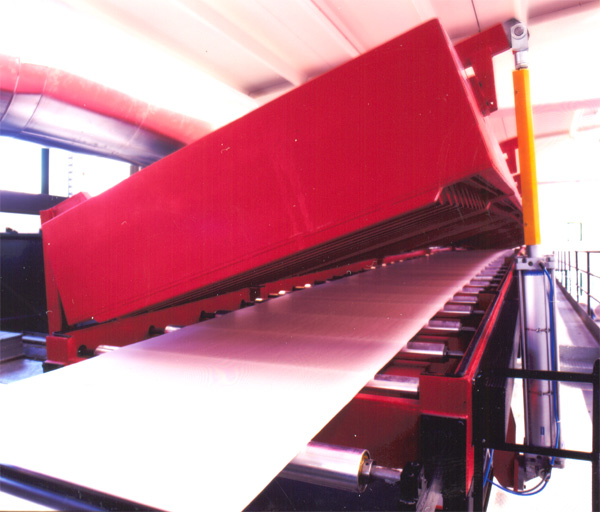

  • Heating tunnel with  independent modules
  • LEL control system for the ovens
  • Heating by: gas – diathermic oil – steam
  • I.R. group for silicone adhesives
  • Material humidification system
  • Automatic weight and humidity control system
  • Chill-roll and lamination system
  • Secondary Unwinders for materials to be laminated
  • Rewinder for liner recovery
  • Single or double Corona treatment group
  • Automatic Duplex Rewinder or with independent arms


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

TECNOLOGIA DI SPALMATURA

Acrilico base acqua e solvente, Solvente
