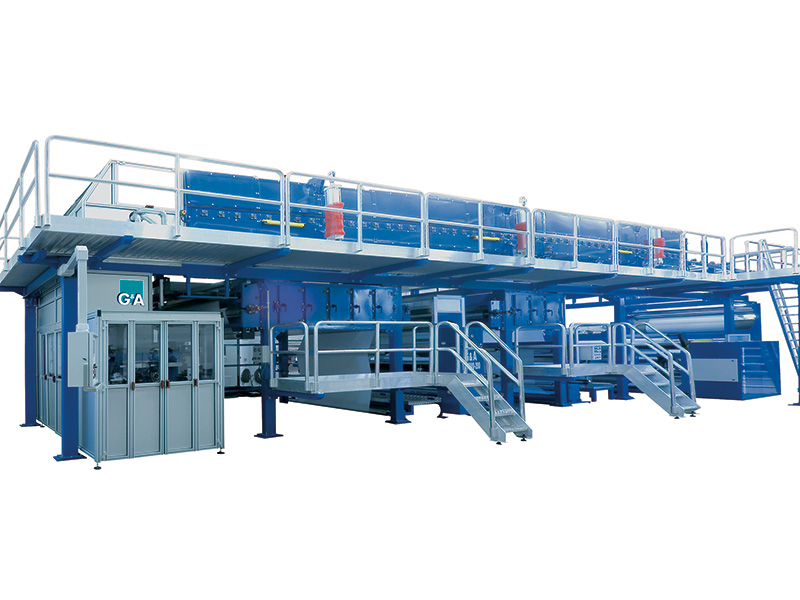

TKS200/P

SOLVENT AND WATER BASED

To produce jumbo-rolls of low and high density  PE for protective tapes
It can coat either solvent and water based acrylic adhesives as well as rubber based solvent adhesives.

TKS200

Descrizione prodotto

IT IS PRODUCED IN VARIABLE WIDTHS FROM 1600 TO 2800 MM.



MAIN FEATURES:

  • Working width: from 1600 to 2800 mm.
  • Production speed: from 150 to 400 m./min.
  • Automatic Duplex Unwinder
  • Coating die GRAVURE type, with closed doctor blade and MAYER BAR
  • Drying tunnel with independent ovens and high efficiency blowers
  • Chilled pull roll
  • Automatic Duplex Rewinder standard or “Pope” type
  • Ovens heating: by gas – diathermic oil – steam
  • Web conveyance inside the ovens by driven rollers or belt
  • Automatic duplex Rewinder standard or “Pope” type

FITTINGS

  • Single or double Corona treatment unit
  • Flexographic printing group, 2 colors type, with drying oven
  • Heat recovery system for energy saving
  • Release group with drying oven


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

VELOCITA' MASSIMA M./MIN.

300
