RS80

FULLY AUTOMATIC

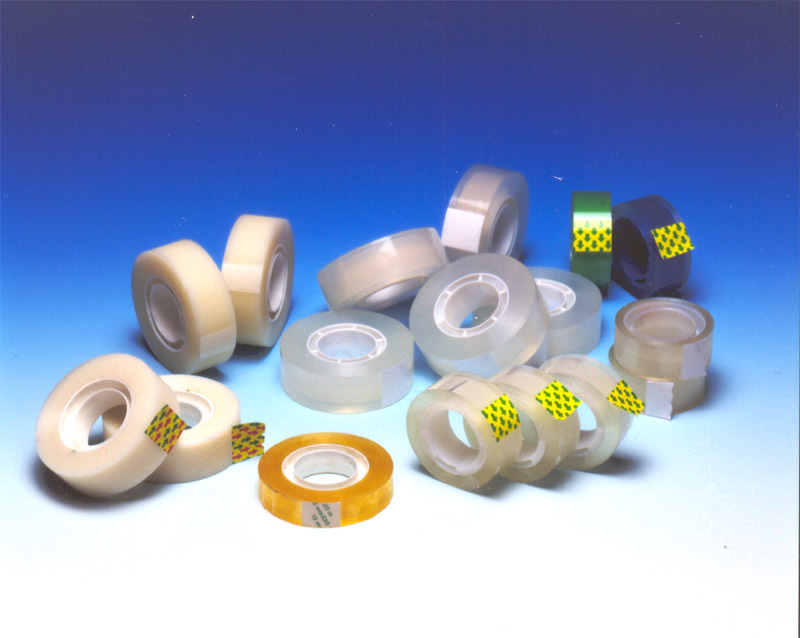

For the production of 1” DIAMETER ROLLS OF BOPP – ACETATE – CELLOPHANE.
The machine can be equipped with PACK-ROLL system to produce rolls of BOPP superclear.

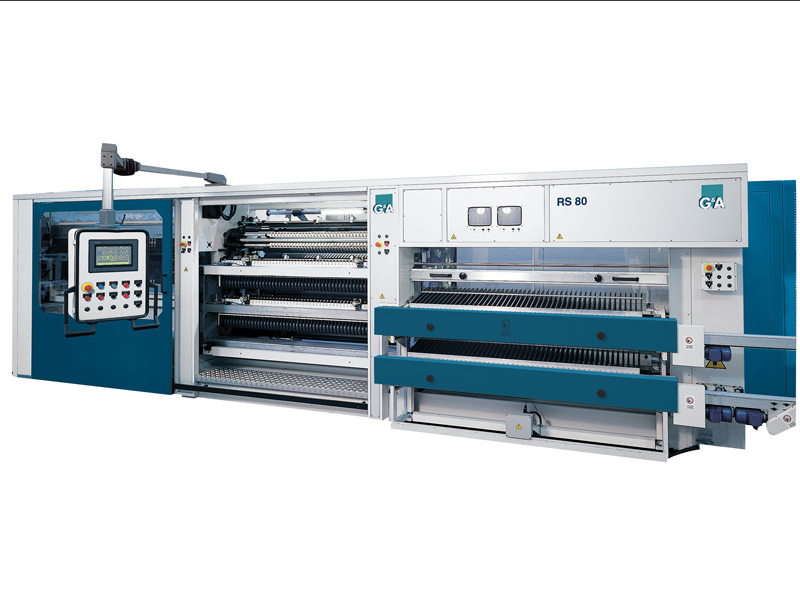

RS-80-MACCHINA

Descrizione prodotto

THE MACHINE WORKS WITH CYCLE TIMES VARIABLE FROM 12 TO 14 SECONDS.



MAIN FEATURES:

  • Working width: up to 2000 mm.
  • Min. slitting width: from 12 to 50 mm.
  • Max. finished rolls diameter: 80 mm.
  • Rolls inside diameter: 1”

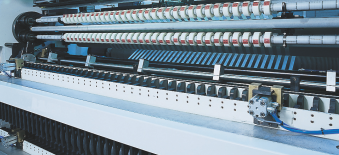

  • Slitting systems: score knives – free blades – guided blades
  • Mechanical speed: 300 m./min.
  • TIME NEDEED FOR THE SIZE CHANGEOVER: 20 MIN. APPROX.

PRODUCTION:

  • Cycle time for BOPP rolls from 5 to 10 m. = from 12 to 14 sec.


    CYCLE TIMES VARIABLE ACCORDING TO THE FITTINGS

FITTINGS:

  • Pack-roll group to produce rolls of “Superclear”

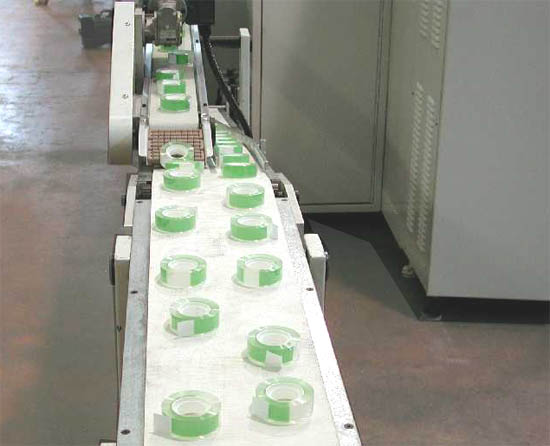

  • Rolls unloading, positioning and conveyance system to packaging lines
  • Printed tab for core total covering
  • Grooved roller – knurled type – to slit acetate tapes
  • Score knives for rolls “easy-tear”


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

DIAMETRO INT. ROTOLI

1″

CICLO PRODUTTIVO

COMPLETAMENTE AUTOMATICO

DIAMETRO MAX ROTOLI FINITI

< 240 mm
