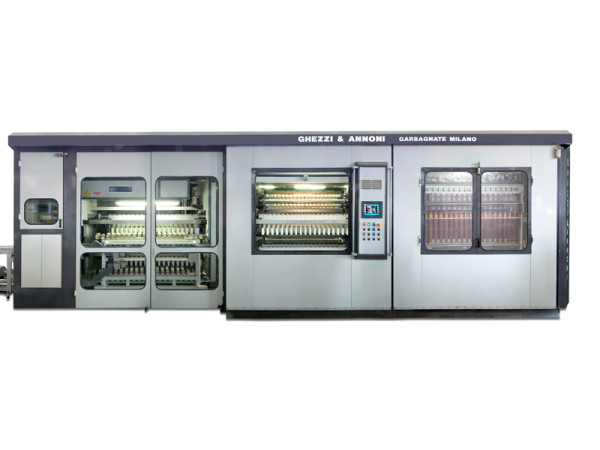

RSE180.2

FULLY AUTOMATIC

Machine of over 4 CYCLES/MINUTE. It is particularly suitable for the production of BOPP and MASKING TAPE rolls.

Senza-titolo-1

Descrizione prodotto

IT PRODUCES BOPP AND MASKING TAPE ROLLS OF 50 M. WITH CYCLE TIMES VARIABLE FROM 14 AND 15 SEC.
THE IDEAL  MACHINE FOR SLITTING DEPARTMENTS THAT MUST  PRODUCE HIGH VOLUMES OF BOPP  CARTON SEALING WITH LENGTH VARIABLE FROM 50 M. TO OVER 200 M.



 MAIN FEATURES:

  • Working width: up to 2150 mm.
  • Min. slitting width: 9 mm.
  • Max. finished rolls diameter: 180 mm.
  • Rolls inside diameter: 3”

FITTINGS:

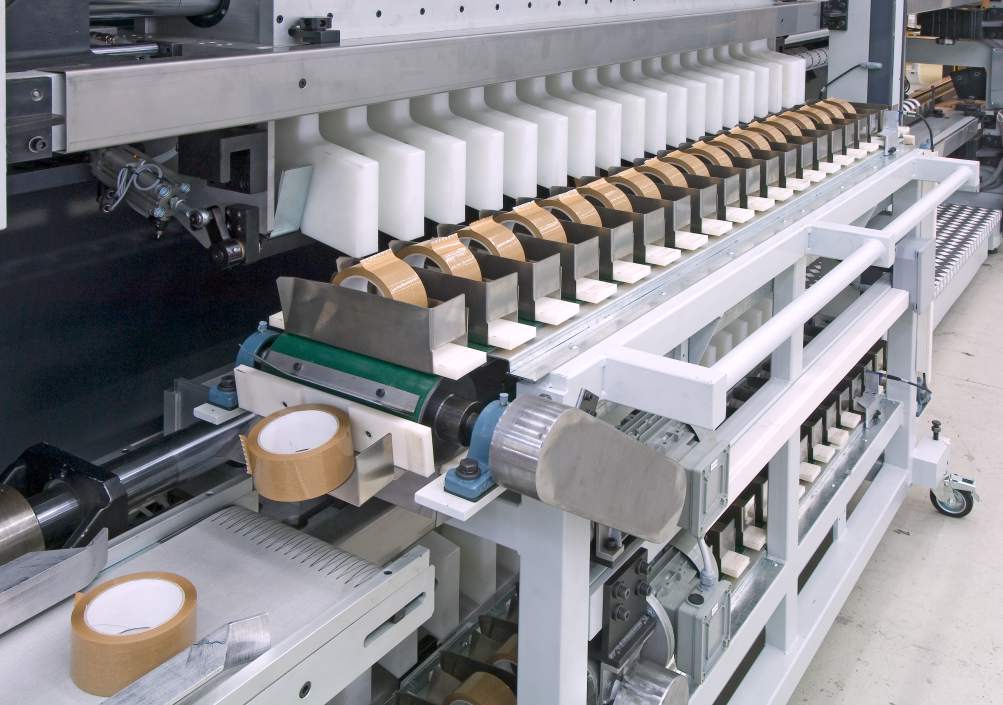

  • Pack-roll group to produce rolls of “Superclear” and to remove the air bubbles into the rolls.
  • Rolls conveyance system to Packaging machines.

END LINE:

Three different models of Packaging machines and one model of Carton Filler have been foreseen to work in line with the RSE 180.2

  • LS60: for flat configurations
  • ATI30: for individual, accordion and tower configurations
  • IP120/2: Pick & Place Box Filler
  • PS20: Palletizing unit


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

DIAMETRO INT. ROTOLI

3″ (6″)

CICLO PRODUTTIVO

COMPLETAMENTE AUTOMATICO

DIAMETRO MAX ROTOLI FINITI

< 240 mm

Recommended Unwinders
