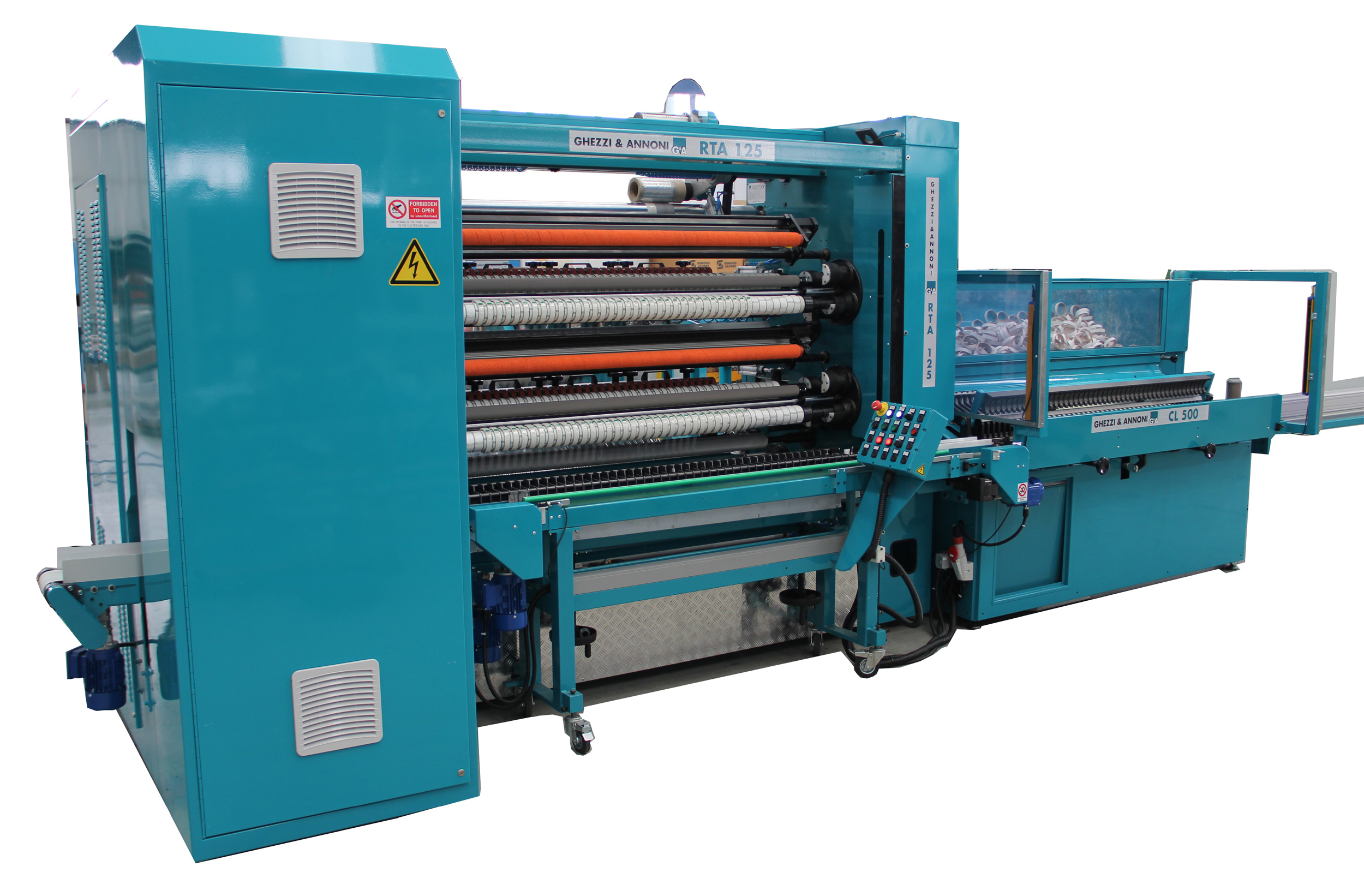

RTA125

SEMI-AUTOMATIC

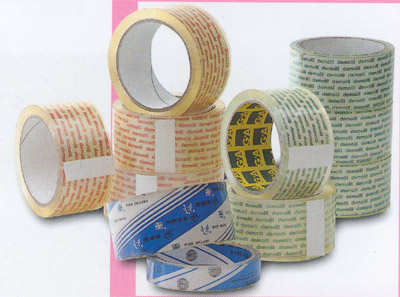

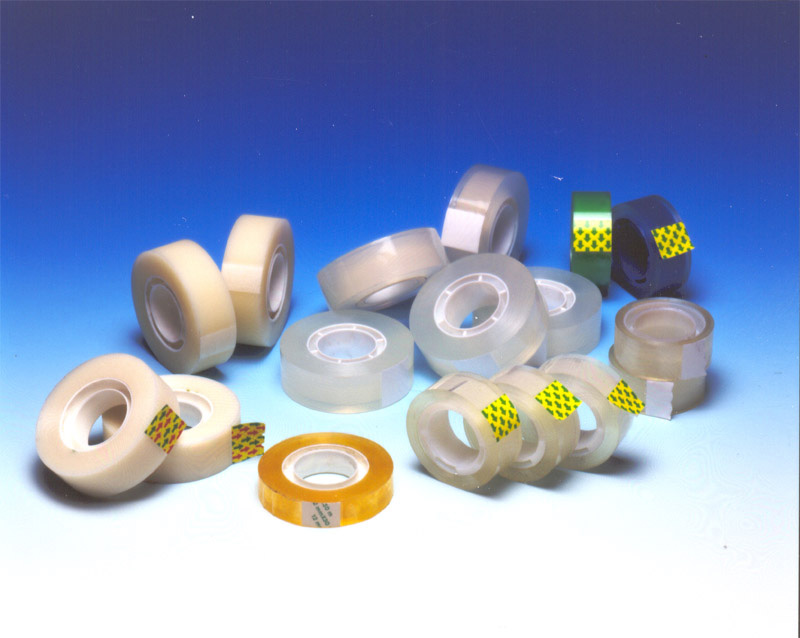

“MULTI-PURPOSE” Slitter-Rewinder able to produce rolls of different self-adhesive materials.  with inside diameter from 3” to 1”



RTA125_2016

Descrizione prodotto

The quick size changeovers and the various slitting systems installed make the RTA125 a machine suitable to run both small and large orders.
By using the PACK-ROLL group it is possible to produce “Superclear” BOPP rolls.



MAIN FEATURES:

  • Working width: up to 2000 mm.
  • Min. slitting width: 9 mm.
  • Max. finished rolls diameter: 125 mm.
  • Finished rolls inside diameter: 1” – 1 ½ “ – 2” – 3”

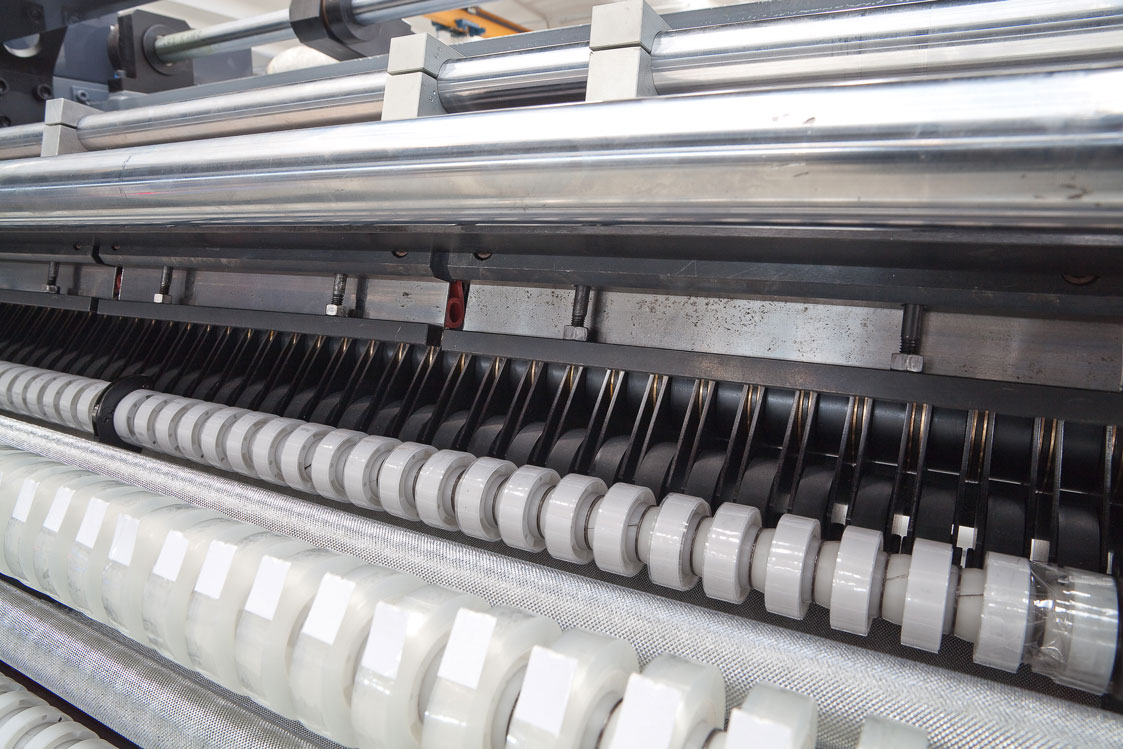

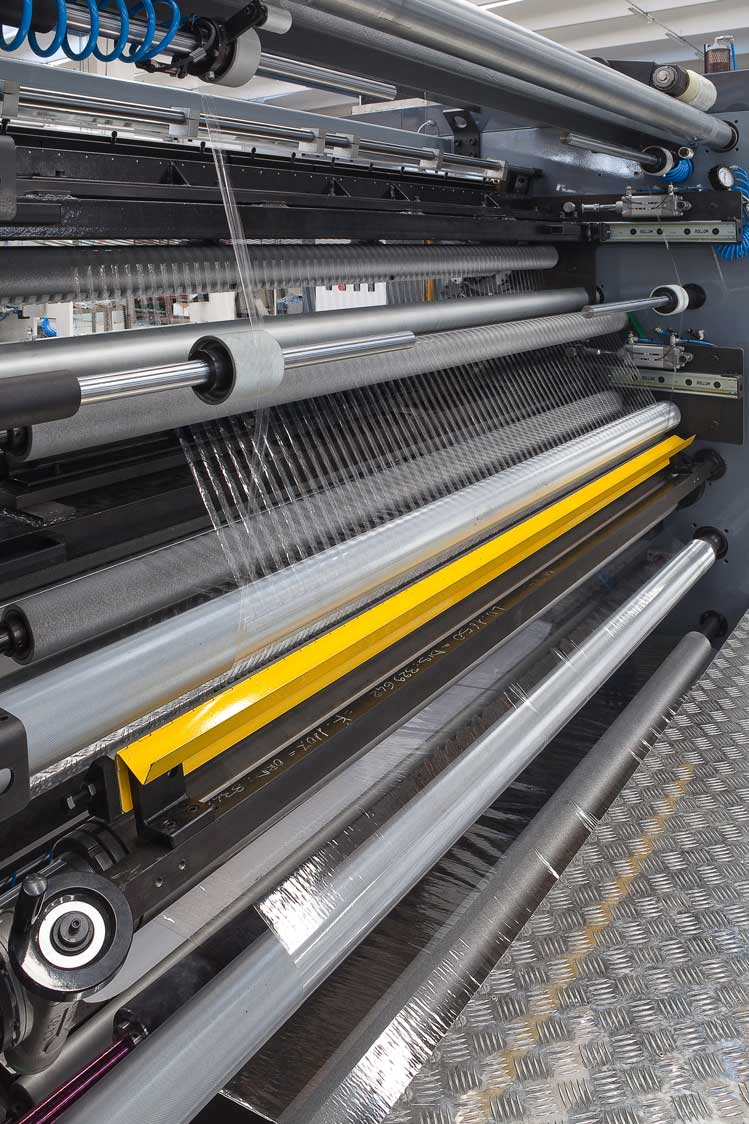

  • Slitting systems: in-air razor blades, in-groove razor blades, score knives, shear knives
  • Rewinding group for with 4 or 8 rewinding shafts.
  • Automatic end-tab application
  • Automatic transversal cut-off
  • Automatic core Loader in line with the Slitter-Rewinder
  • Automatic transfer of the rewinding shafts from the Slitter-Rewinder to the Core Loader and vice versa

PRODUCTION:

  • Cycle time for 10 m. BOPP rolls = 18 sec. approx.
  • Cycle time for 50 m. BOPP rolls = 27 sec. approx.

FITTINGS:

  • Pack-roll group to produce rolls of “Superclear”
  • Double-adhesive and silicone tabs for special laminated materials
  • Systems for rolls positioning and conveyance to the Packaging Machines
  • Other fittings according to the material to be converted


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

DIAMETRO INT. ROTOLI

1,5″, 1″, 2″, 3″ (6″)

CICLO PRODUTTIVO

SEMI-AUTOMATICO

DIAMETRO MAX ROTOLI FINITI

< 240 mm
