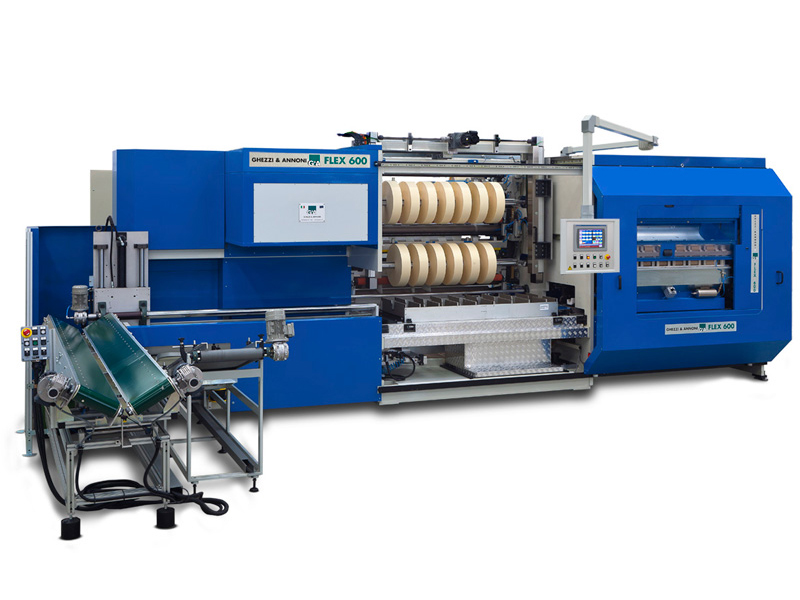

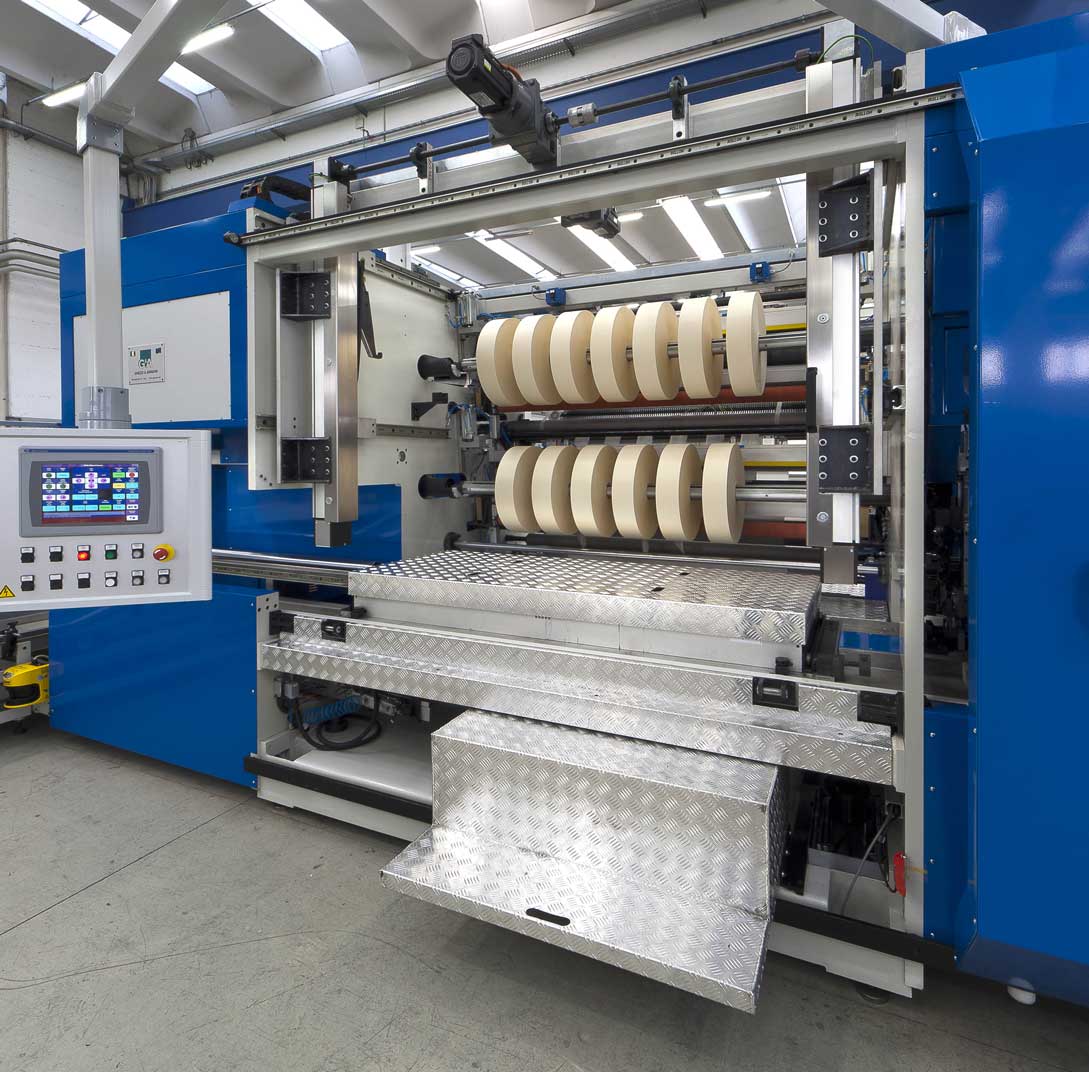

FLEX600

FULLY AUTOMATIC

MACHINE OF NEW GENERATION THAT WORKS AS SLITTER-REWINDER AS WELL AS LOG-WINDER.

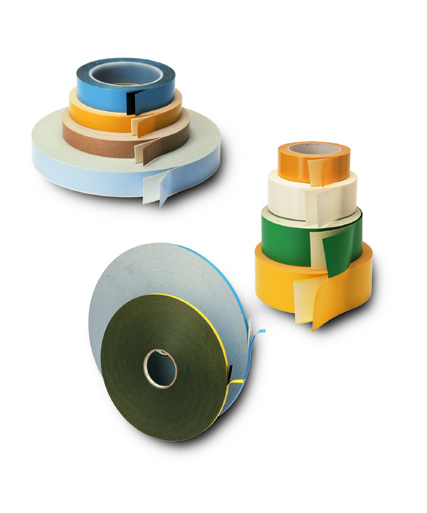

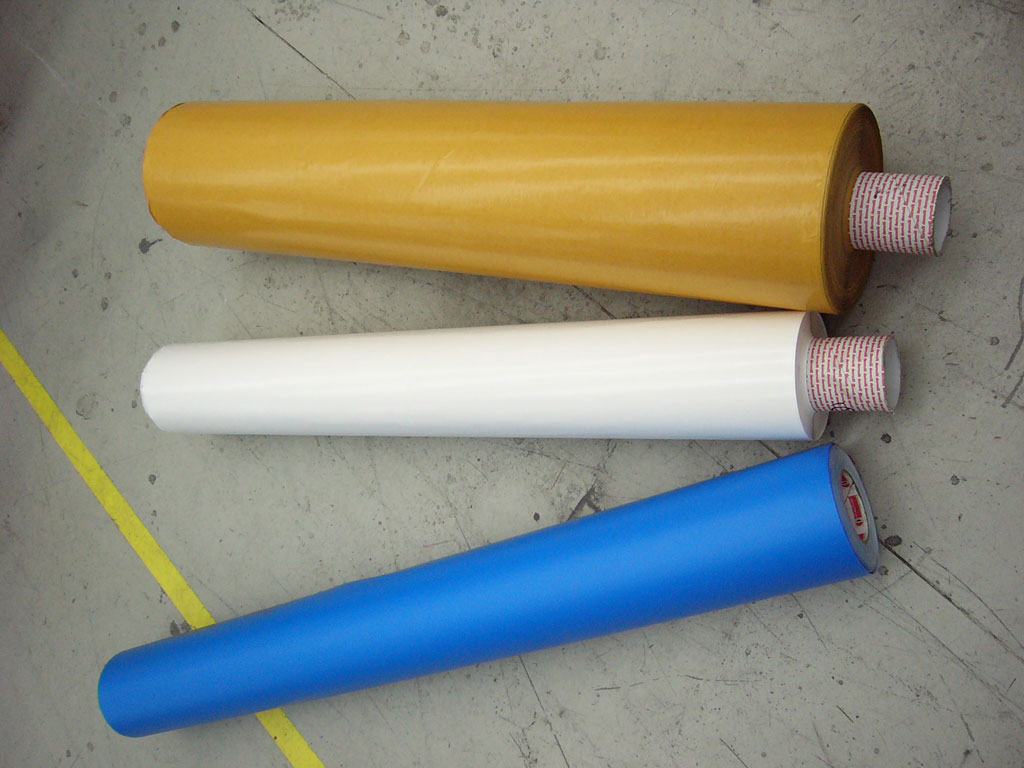

IT PRODUCES ROLLS AND LOGS WITH DIAMETER VARIABLE FROM 100 TO 600 MM. AND WIDTHS FROM 9 MM. up to full width Jumbo-roll, with millimetric increments.



IMG_8041
foto prodotti - da tagliare e mettere come catalogo generale taglierineIMG_8082IMG_8116IMG_8124RB-barre-(1)

Descrizione prodotto

FLEX600 is a modular machine built according to the CUSTOMER NEEDS.
It converts any type of material with thickness from 15 micron up to over 5 mm.
The automation and the installed control system allow very quick production changeovers, which are performed by the machine’s operator.



MAIN FEATURES:

  • Working width: up to 2150 mm.
  • Min. slitting width: 9 mm.
  • Max. finished rolls and logs diameter: 600 mm.
  • Rolls and logs inside diameter: 3” (6” upon request)

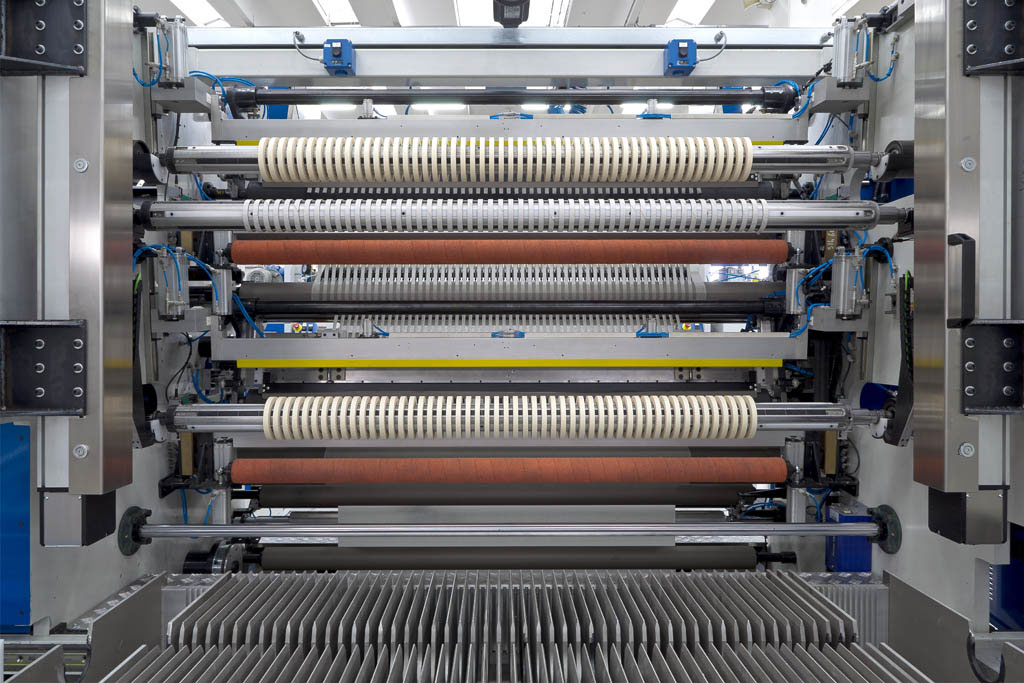

  • Slitting systems: razor-blades, score-knives and shear-knives – traditional type or with automatic positioning.
  • Mechanical speeds: from 400 to over 600 m./min. according to the materials and to the machine’s configuration.
  • Trims group: vaccum and/or rewound type.
  • Rewinding shafts: pneumatic-differential shafts, differential shafts, pneumatic shafts.

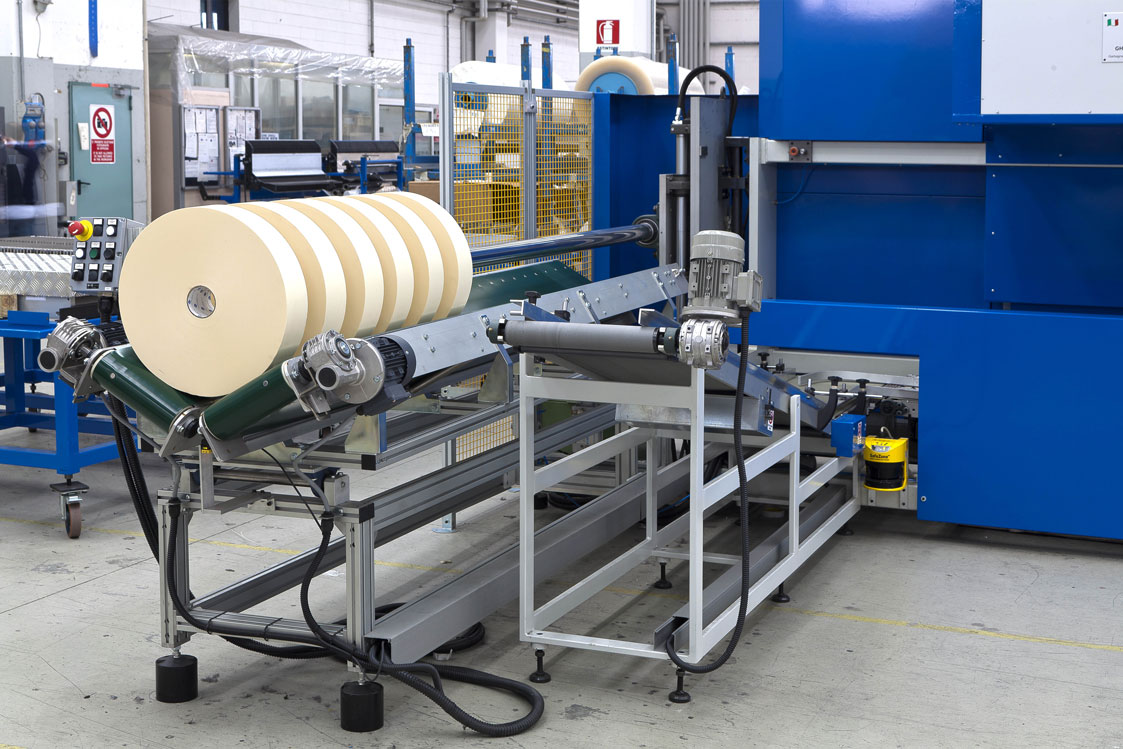

  • Independent unloading system – double type – for rolls and logs

FITTINGS:

  • Rolls end-tab: double-adhesive, silicone
  • Delaminating – slitting – laminating system
  • Interchangeable groups for dedicated widths and “UNIVERSAL” group for different widths.
  • Liner or waste material recovery station.
  • Tables for splicing and material inspection


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

CICLO PRODUTTIVO

COMPLETAMENTE AUTOMATICO

DIAMETRO INT. ROTOLI

2″, 3″ (6″)

DIAMETRO MAX ROTOLI FINITI

> 400 mm

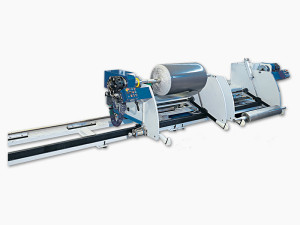

Recommended Unwinders
