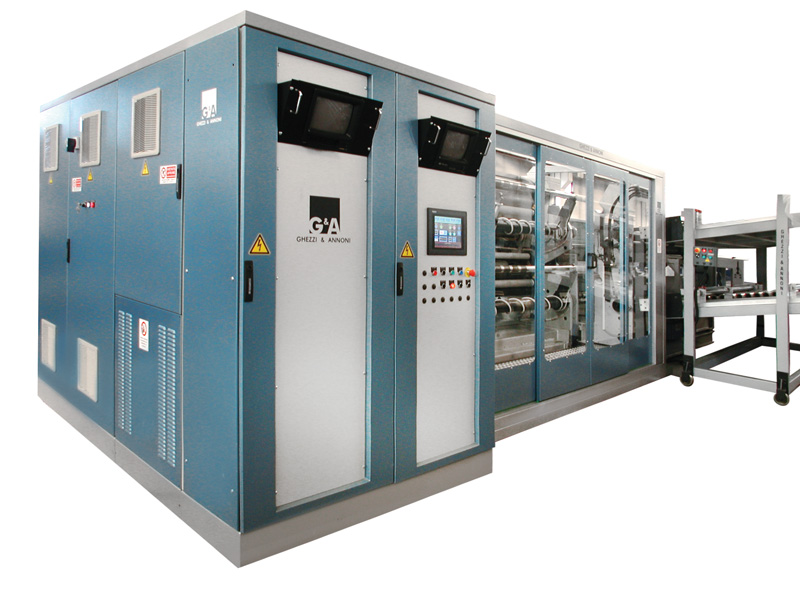

RST600

FULLY AUTOMATIC

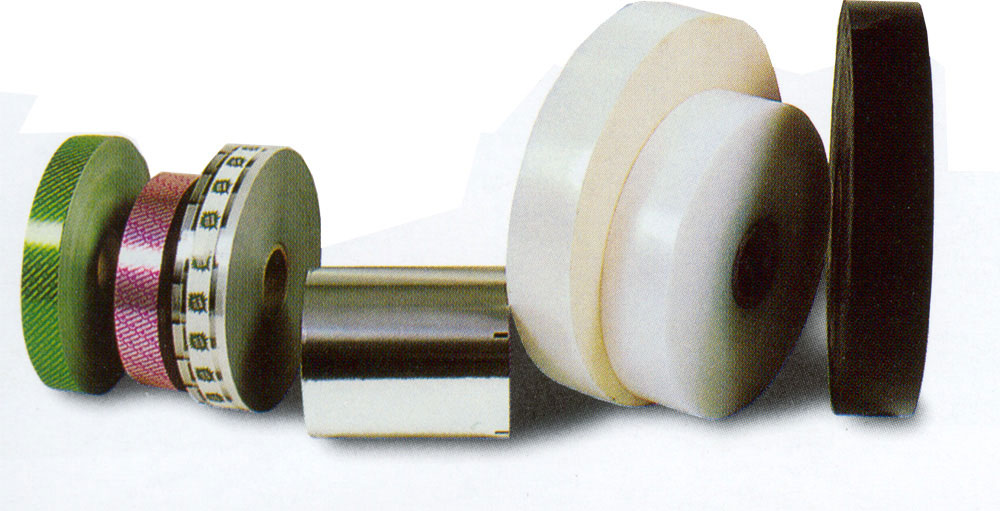

MACHINE DESIGNED TO PRODUCE ROLLS AND LOGS PROTECTIVE POLYETHYLENE.

THE FIRST MANUFACTURED RST600 HAS A  2800 MM. WORKING WIDTH AND IS EQUIPPED WITH AN UNWINDER WITH AUTOMATIC JUMBO-ROLL CHANGEOVER MOD. SCR5.



RST600
1-3lDSCN0872DSCN0888Rotoloni-rst-600-copia

Descrizione prodotto

The RST600 works with a CENTER-SURFACE TYPE rewinding system that removes the fish-eyes during the rewinding phase.
With appropriate fittings, it can convert any type of flexible materials besides the PROTECTIVE POLYETHYLENE



MAIN FEATURES:

  • Working width: up to 2800 mm.
  • Min. slitting width: 20 mm.
  • Max. rewound diameter: 600 mm.
  • Finished rolls and logs inside diameter: 3” (other diameters upon request)
  • Slitting systems: razor-blades, shear-knives and score-knives – traditional type or with automatic positioning.
  • Mechanical speed: 600 m./min.

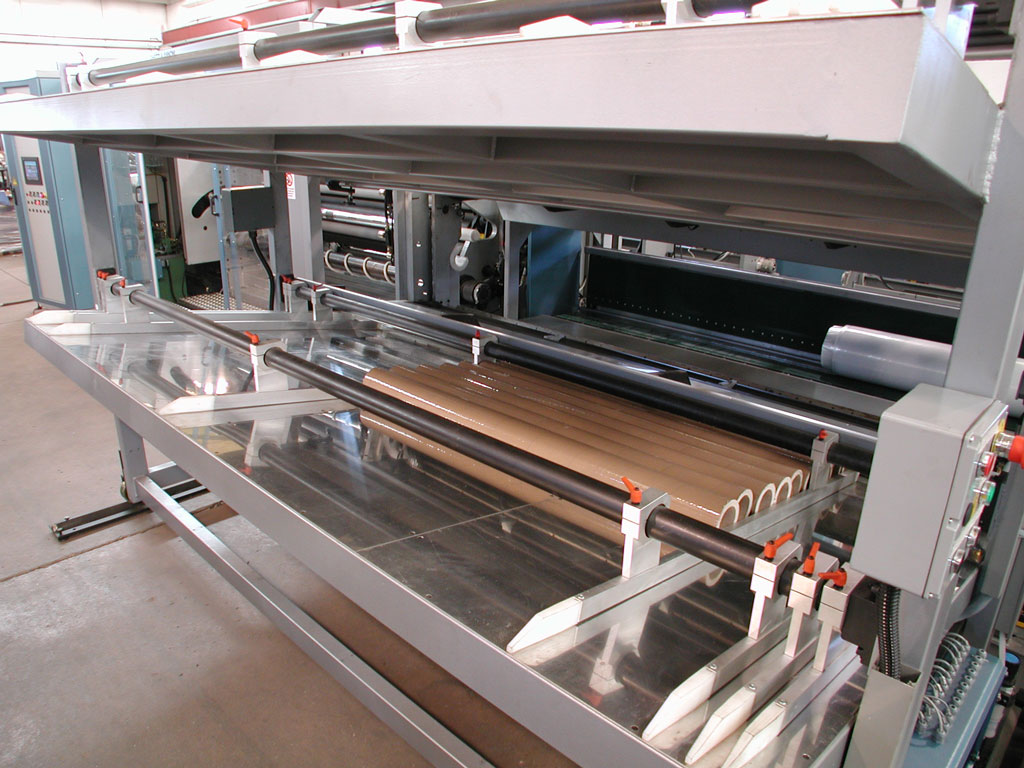

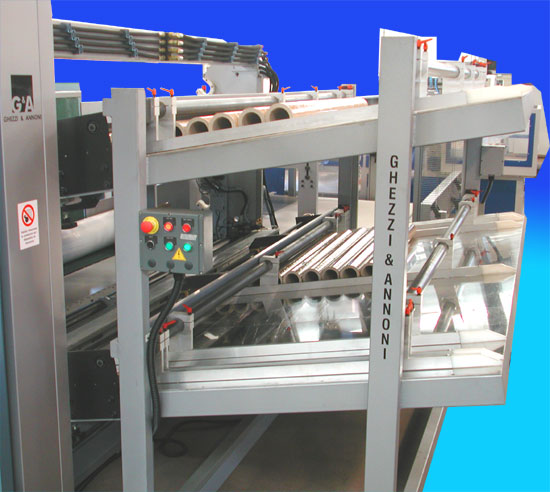

  • Automatic loading for cores and tubes
  • Finished logs automatic unloading
  • Trims with rewinding – vacuum type –

FITTINGS:

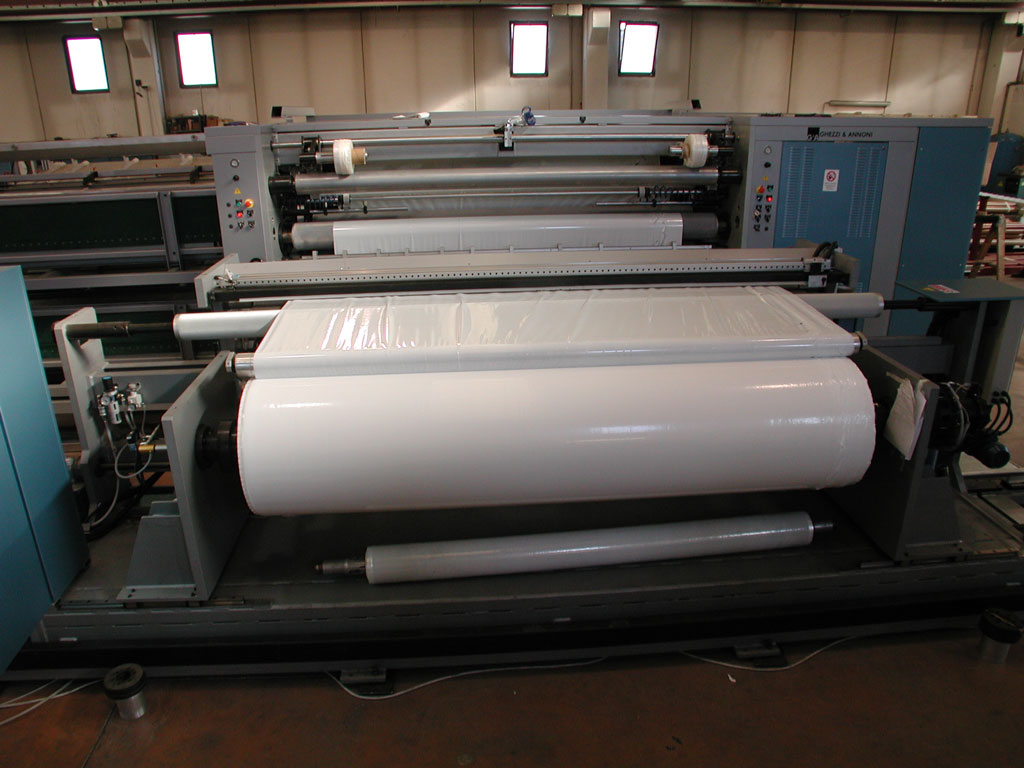

  • Unwinder – double station type – with automatic splicing table mod. SCR5
  • Finished logs conveyance system


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

DIAMETRO INT. ROTOLI

3″ (6″)

CICLO PRODUTTIVO

COMPLETAMENTE AUTOMATICO

DIAMETRO MAX ROTOLI FINITI

> 400 mm
